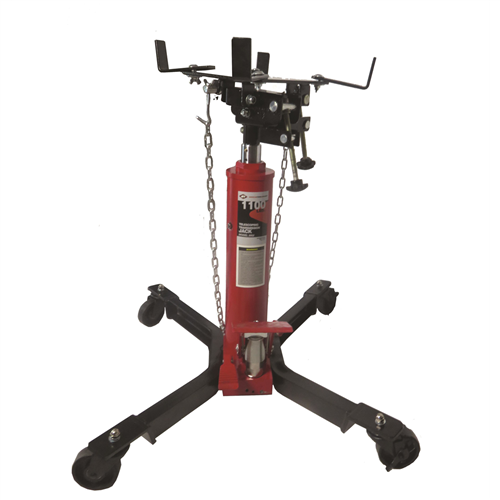

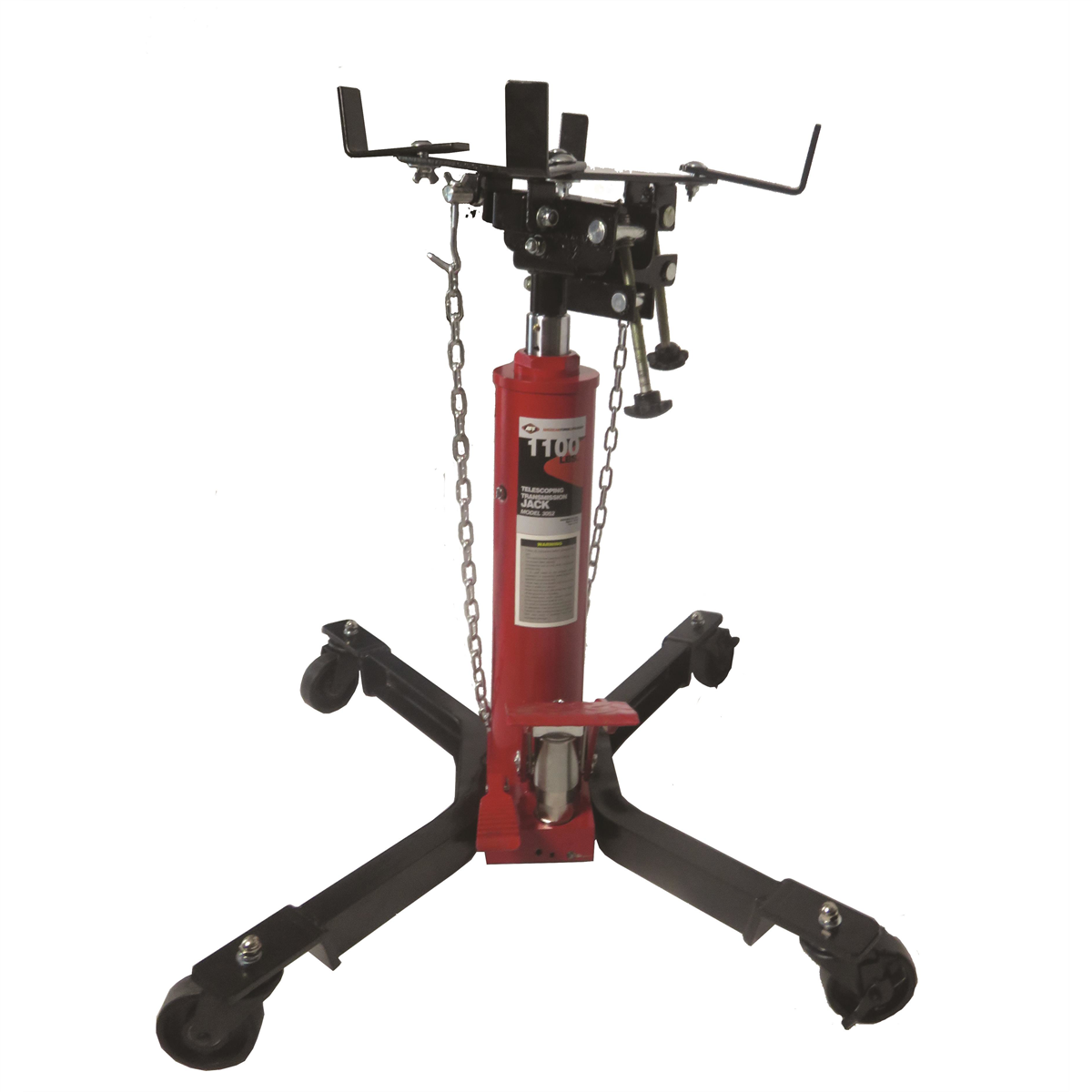

3052 American Forge & Foundry Aff - Transmission Jack - Hydraulic - Telescopic - Two Stage - 1,100 Lbs. Capacity - 37" Min H To 78" High H - Manual Foot Pedal - Double Pump Quick Lift

Request us to BEAT a competitor's price. Click Here
3052 American Forge & Foundry Aff - Transmission Jack - Hydraulic - Telescopic - Two Stage - 1,100 Lbs. Capacity - 37" Min H To 78" High H - Manual Foot Pedal - Double Pump Quick Lift

Features and Benefits:

• • Color: Red/Black
  • Unit Type: Telescopic Transmission Jack
  • Power Type: Hydraulic
  • Operation Type: Manual
  • Ram Stages: 2
  • Capacity: 1,100 Lbs.
  • Minimum Height: 37"
  • Maximum Height: 78"
  • Front Tilt: 28�
  • Rear Tilt: 49�
  • Head Width: 8” x 8” to 14” x 14”
  • Base Width: 28” x 32”
  • Working Air Pressure: N/A
  • Warranty: 1 Year
  • Weight: 161 Lbs.
  • Certification: ASME/Pase 2019
  • Two stage telescopic ram designed for medium duty transmissions, transfer cases, and differentials.
  • Double pump hydraulic system for quick lift operation.
  • Powder coat finish provides resistance to corrosion, chemicals, and scratches.
  • Chrome plated pump core and piston rod reduces friction and provides long service life.
  • Adjustable saddle with corner bracket and safety chain.



American Forge & Foundry�s Transmission Jacks provide the service technician the capability for “one-man” removal and installation of bulk transmissions, differentials, transfer cases, fuel tanks, and more.

• AFF offers telescoping, low profile, and high lift styles in both manual hydraulic and air assist.
