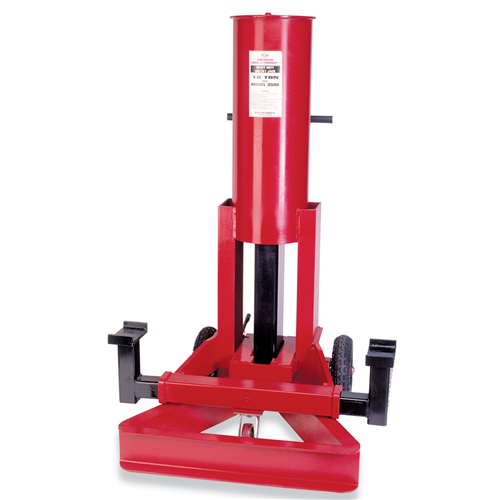

3598 American Forge & Foundry Aff - End Lift - 10 Ton Capacity - Air Operated
3598 American Forge & Foundry Aff - End Lift - 10 Ton Capacity - Air Operated



Our Price: $3,825.48

Stock Status:In Stock


Product Code: INT3598
Qty:

Description Warranty


Request us to BEAT a competitor's price. Click Here
3598 American Forge & Foundry Aff - End Lift - 10 Ton Capacity - Air Operated

Features and Benefits:

    • Color: Red/Black
    • Capacity: 10 Ton
    • Product Type: Air Lift Jack
    • Power Type: Air
    • Operation: Air Valve
    • Minimum Height: 12.
    4"
  • Maximum Height: 49.
6"
  • Chassis Length (in.
    • ): 35.5"
  • Chassis Width: 47.
    • 3"
  • Reach (in.
    • ): 50.6
  • Lift: 37.
    • 2"
  • Saddle Diameter: 4" x 6"
  • Saddle Spread (in.
    • ): 36" - 50"
  • Handle Length (in.
    • ): 18.9"
  • Working Air Pressure: 200 PSI
  • Weight: 682 Lbs.
  • Wheels: Qty 2 - 8" Pneumatic Wheels, Qty 1 - Front Swivel Caster
  • Certification: ASME/PASE 2019
  • Warranty: 1 Year
  • Adapters Included: Qty2 - 4" x 6" Saddles
  • Special Features: 3 Way Air Valve| Automatic Safety Lock
  • The AFF Air End Lift is designed with an extra-wide stance to lift the entire front or rear of large trucks, buses, industrial, heavy-duty construction equipment, and large farm vehicles.
  • 10-Ton capacity achieved at 200-PSI air supply.
  • Three-way air valve for fine lifting and lowering control.
  • 4" x 6" steel saddles adjust between 36" and 50" widths.
  • Saddle arms reversible for low height loads.
  • 13" Forward reach (distance from cylinder to saddles).
  • Automatic mechanical safety lock engages at five lift heights from 17-1/2" to 50".
  • Two air control valve fittings ‐ one for shop air supply and one for a Schrader valve.
  • Front swivel caster and two pneumatic rear tires for easy maneuverability.

    • American Forge & Foundry features a wide range of specialty jacks for the trucking, agriculture, fleet, and military sectors.

  • Each is designed for applications where extra capacity, added reach, or height may be required.

    •
