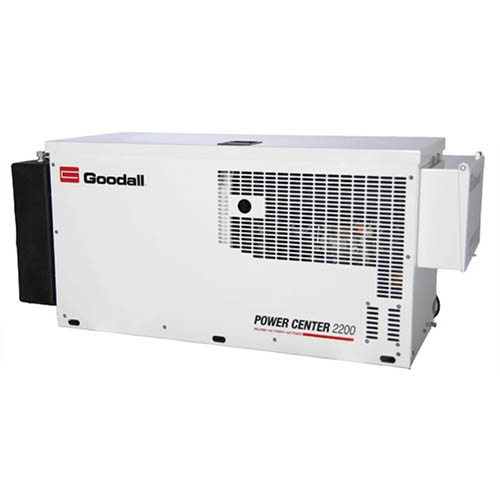

Goodall 02-200-CARB GPC 2200 Welder, 250 amp; Generator 5,000 watt; Air Compressor 24 cfm with California compliant fuel tank

• Provides for a compact, easy installation in less time with these simple bolt-in packages
• Center point lift included for easy installation
• Includes 8 gallon fuel tank (removable)
• Control panel box is removable for remote mounting
• California compliant fuel tank

Dimensions:

• Unit with fuel tank: 20"W x 48"D x 25"H, 625 lbs.
• Unit footprint without fuel tank and control box: 20"W x 48"D

Product Description:

• Same as Goodall® Power Center 2050 plus Auto Idle. Idles the engine down when not under load

Engine:

• Electric start, air cooled Kohler Command OHV V-Twin

DC Welding:

• DC Stick 40 – 250 amp – 250 amp 60% duty cycle

Cables:

• 25 ft. 1/0 ga. welding cables included

AC Output:

• 120/240 volt, 5,000 watt, 60 Hz
• one 120 volt, 20 amp duplex outlet
• one 120 volt, 30 amp twist lock outlet
• one 240 volt, 20 amp twist lock outlet

Air Power:

• 2 stage 24 CFM @ 100 psi, 150 psi max
• Air gauge on control panels monitors air tank pressure
• *Air tank required, sold separately*

Warranty:

• Engine | 3 years
• Compressor | 1 Year
• AC Generator | 1 Year
• General | 1 Year
