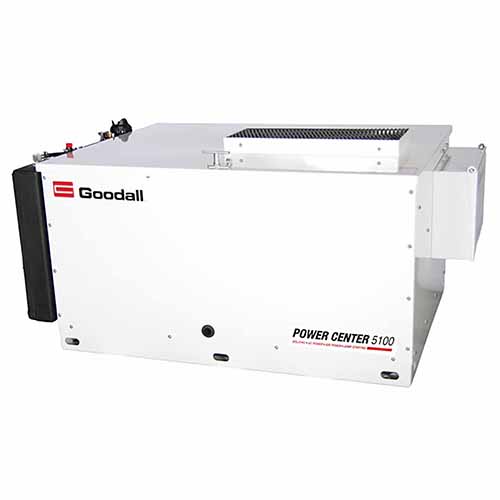

Goodall 05-100 GPC 5100 Start-All, 700 amp, 12 & 24 volt; Welder, 240 amp; Generator 5,000 watt; Air Compressor 23 cfm

Goodall 05-100 GPC 5100 Start-All, 700 amp, 12 & 24 volt; Welder, 240 amp; Generator 5,000 watt; Air Compressor 23 cfm



List Price: $22,214.00
Our Price: $18,215.48



Product Code: 05-100


5100 Series Options & Accessories*:
None
350-087 50' Welding Cable Upgrade [Add $320.62]
450-044 50' Boosting Cable Upgrade [Add $216.48]
50-443 12 Gal. Horizontal Mount Air Tank [Add $495.28]
550-056 30 CFM Air Compressor Upgrade [Add $1,049.60]
61-130 30 Gal. Vertical Mount Air Tank [Add $610.08]
61-131 30 Gal. Horizontal Mount Air Tank [Add $590.40]
950-087 6' Control Panel Harness [Add $917.58]
950-088 12' Control Panel Harness [Add $1,318.56]
950-153 18' Control Panel Harness [Add $1,705.60]

Qty:
Description


GPC 05-100


Dimensions:

  • 38"W x 55"D x 27"H, 850 lbs.
  • Unit footprint without fuel tank and control box: 38"W x 46"D

Engine:

  • Electric start, air cooled Kohler Command OHV V-Twin
  • Includes 6 gallon EPA compliant side mount fuel tank (removable)

DC Welding: DC Stick 40 – 250 amp – 250 amp 60% duty cycle

Cables: 25 ft. 1/0 ga. welding cables included

AC Output: 120 volt, 5,000 watt, 60 Hz

Outlets:

  • one 120 volt, 20 amp duplex outlet
  • one 120 volt, 30 amp twist lock outlet
  • one 240 volt, 20 amp twist lock outlet

Air Power:

  • 23 CFM @ 100 psi, 150 psi max
  • Air gauge on control panels monitors air tank pressure

*Air tank required, sold separately.*

Warranty:

  • Engine | 3 Years
  • Compressor | 1 Year
  • AC Generator | 1 Year
  • General | 1 Year
