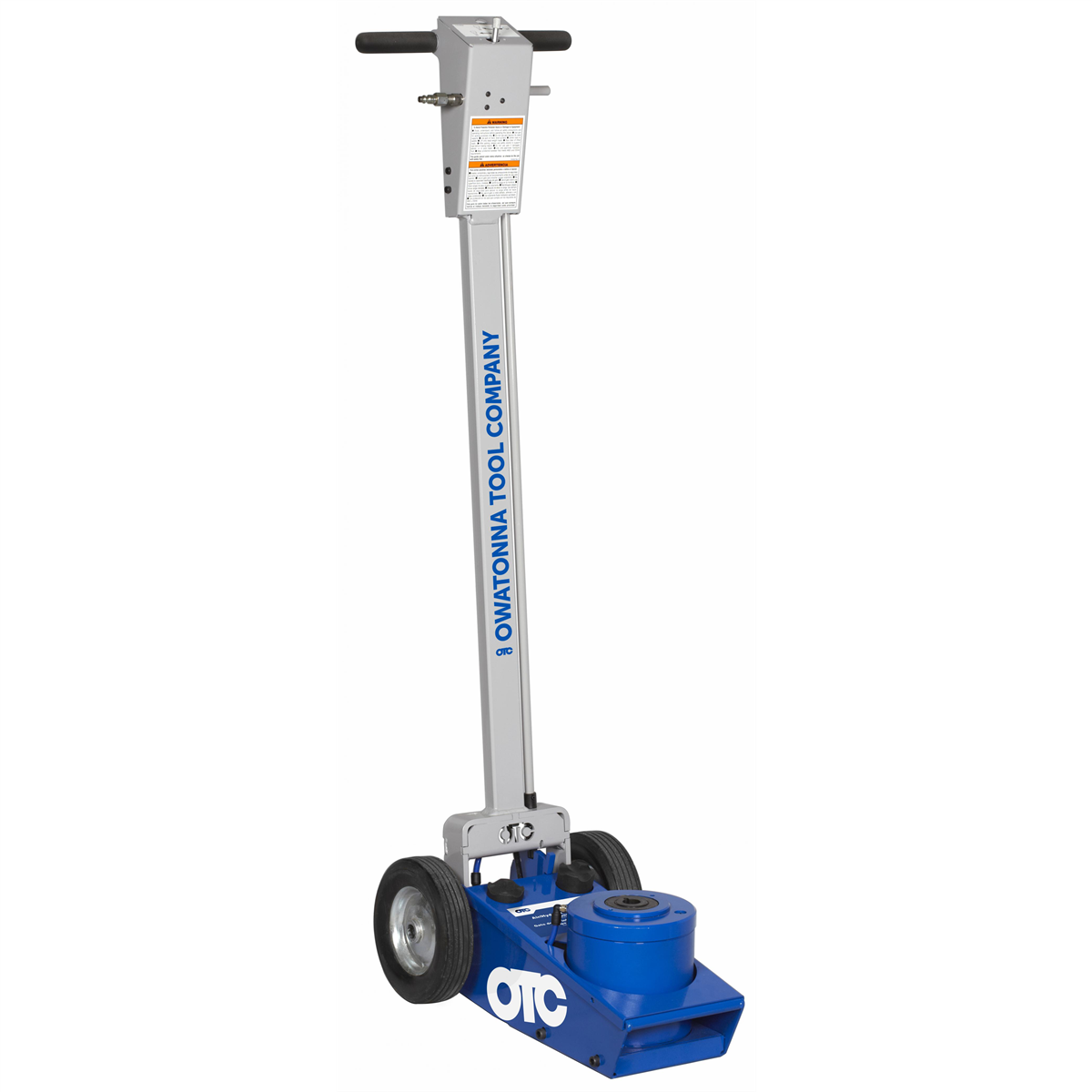

UA27 Otc 27.5-Ton Under Axle Jack

UA27 Otc 27.5-Ton Under Axle Jack

Our Price: $4,936.18

Stock Status:In Stock

Product Code: OTCUA27
Qty:

Description Warranty


Request us to BEAT a competitor's price. Click Here
UA27 Otc 27.5-Ton Under Axle Jack

Features and Benefits:

    • Heavy-duty air and hydraulic performance for garages, equipment dealers, commercial service and more
    • Welded hydraulic pump and cylinder construction provides increased strength and leak prevention
    • Chrome plated ram for additional rust resistance
    • Wiper seals protect hydraulic system from contaminants
    • 4-position handle makes it easy to position under vehicles with low overhangs
    • Wide rugged base adds stability and strength
    • Large rear wheels provide easy positioning and portability
    • Dependable Venturi vacuum power return system feature lowers piston ram quickly with no load
    • Multi-lingual OTC Owners Manual for service jacks with training (operating) instruction
    • Made in the USA
    • Lifetime Warranty

    • Versatile, easy-to-use heavy duty under-axle hydraulic jack that is compact, can fit under many types of vehicles, and handle a wide assortment of vehicles.

    • The self-retracting, Venturi vacuum power return system feature with long 48-3/4" T-handle lets you easily position jack under vehicles with long overhangs.
    • One pull of the handle activates the self-retracting 27.
    5-ton capacity ram without having to crawl underneath the vehicle.
  • Large rubber-tired steel wheels for maneuverability and movement on most types of terrain.
  • Two saddle attachments included for multiple height adjustments based on vehicle being lifted.
  • The 4-position handle includes a stow-away position for easy storage and near-vertical handle position.
  • A pneumatic release valve offers more precise release control without requiring a separate valve operation step.
  • The jack's completely sealed piston protects it from dirt, dust, sand or other damaging outside elements.
  • 4.
9375" Cylinder stroke, 4-1/2"; 4-1/4" extended screw length.Ideal size for safely lifting heavy duty vehicles.
  • Specifications:27.
  • 5-ton capacityAir pressure: 90 - 175 PSILifting range: 8-1/4" to 21-3/8" using longest saddleReach: 69.87"Saddle: 3" dia., round with center notch.
  • Includes 2 saddle adaptersMax height using saddle only: 13-1/8"Max height using large adapter: 21-3/8"Frame height: 8.
  • 27"Handle length: 48-3/4" T handle with lowering lever and air-chuck hookFootprint: 22" x 12"Wheels: 2 fixed; 7.88" rubberized steel Meets all 5 ASME PASE-2019 safety standards for service jacksLimited Lifetime Warranty
