5018A Otc Low Clearance Truck Clutch And Flywheel Handler

Request us to BEAT a competitor's price. Click Here

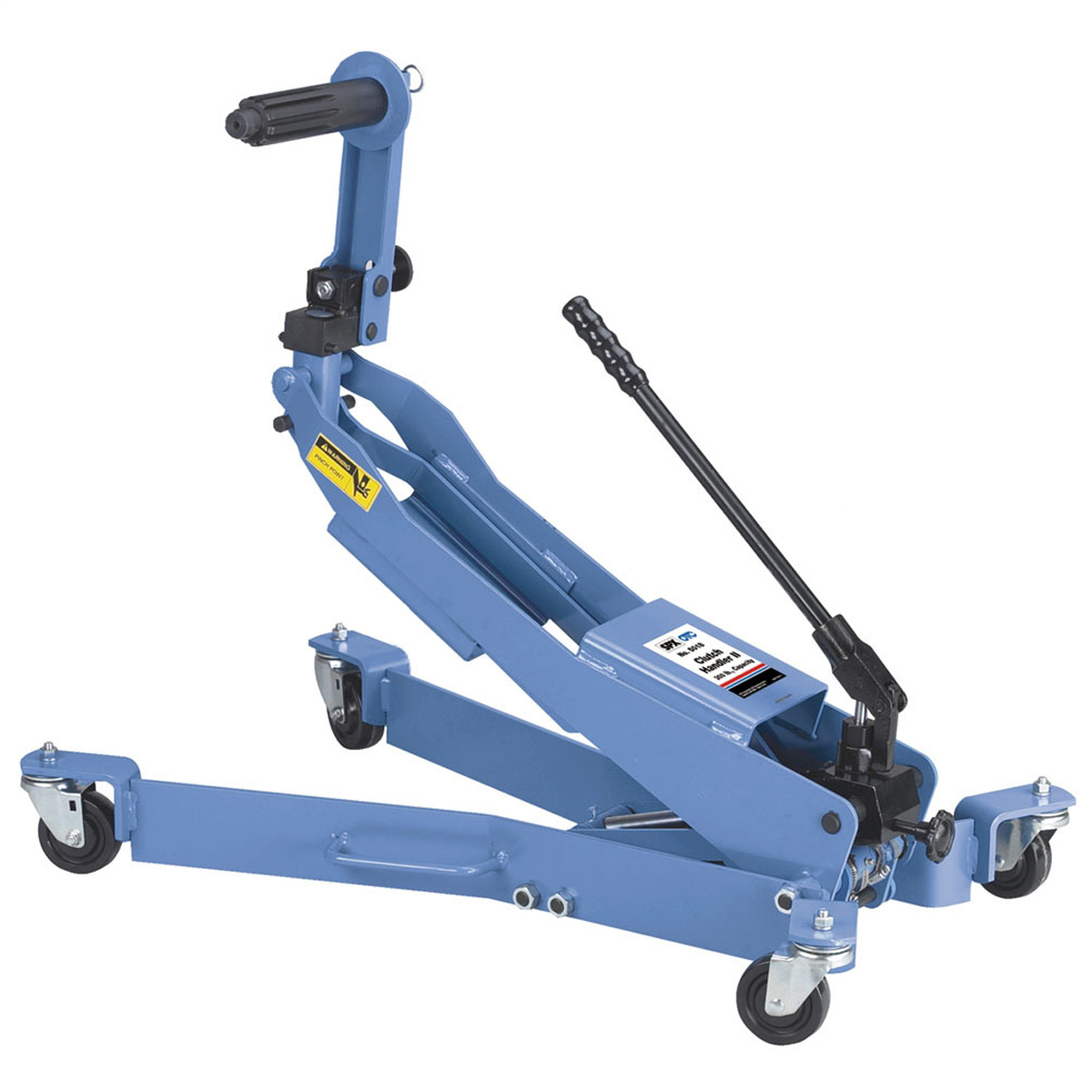

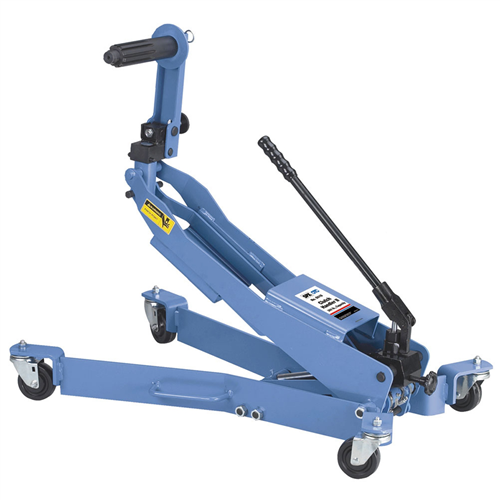

5018A Otc Low Clearance Truck Clutch And Flywheel Handler

Features and Benefits:

• • OTC's Truck Clutch & Flywheel Handler features a unique linkage design that raises the load from horizontal to vertical as the pump is cycled - eliminating any lifting of the clutch by the operator
  • Handles 14 inch and 15-1/2 inch clutch assemblies weighing up to 250 lbs; swivel casters provide easy maneuverability; includes a 2 inch splined shaft with a 1-1/4 inch pilot to aid in alignment
  • Minimum height of 15 inches allows access below side faring; when raised, center line of clutch will be 38-1/4 inches off the floor
  • Unit features an open stance, for ease of access to the work, and a 360 degree swivel head
  • Overall footprint is 32-3/8 inches long by 24-1/2 inches wide



  OTC's Truck Clutch & Flywheel Handler features a unique linkage design that raises the load from horizontal to vertical as the pump is cycled - eliminating any lifting of the clutch by the operator and truly making clutch installation a one person job.

  • Versatile unit handles 14 inch and 15-1/2 inch clutch assemblies weighing up to 250 lbs.
  • Heavy duty swivel casters provide easy maneuverability.
  • Handler includes a 2 inch splined shaft with a 1-1/4 inch pilot to aid in alignment.
  • Minimum height of 15 inches allows access below side faring.
  • When raised, center line of clutch will be 38-1/4 inches off the floor.
  • Unit features an open stance, for ease of access to the work, and a 360 degree swivel head.
  • Overall footprint is 32-3/8 inches long by 24-1/2 inches wide.
  • Value is at the core of the OTC tool and equipment portfolio.
  • For a simple repair or the most complex drivability concern, these award-winning tools universally solve problems faster, and at better value, than any other product line available.
  • Whether it�s a specialty tool or unique piece of service equipment, OTC provides top solutions to modern automotive service challenges while increasing technicians� productivity and shop profits.
