4240A Otc 30 Ton King Pin Pusher Set

Request us to BEAT a competitor's price. Click Here

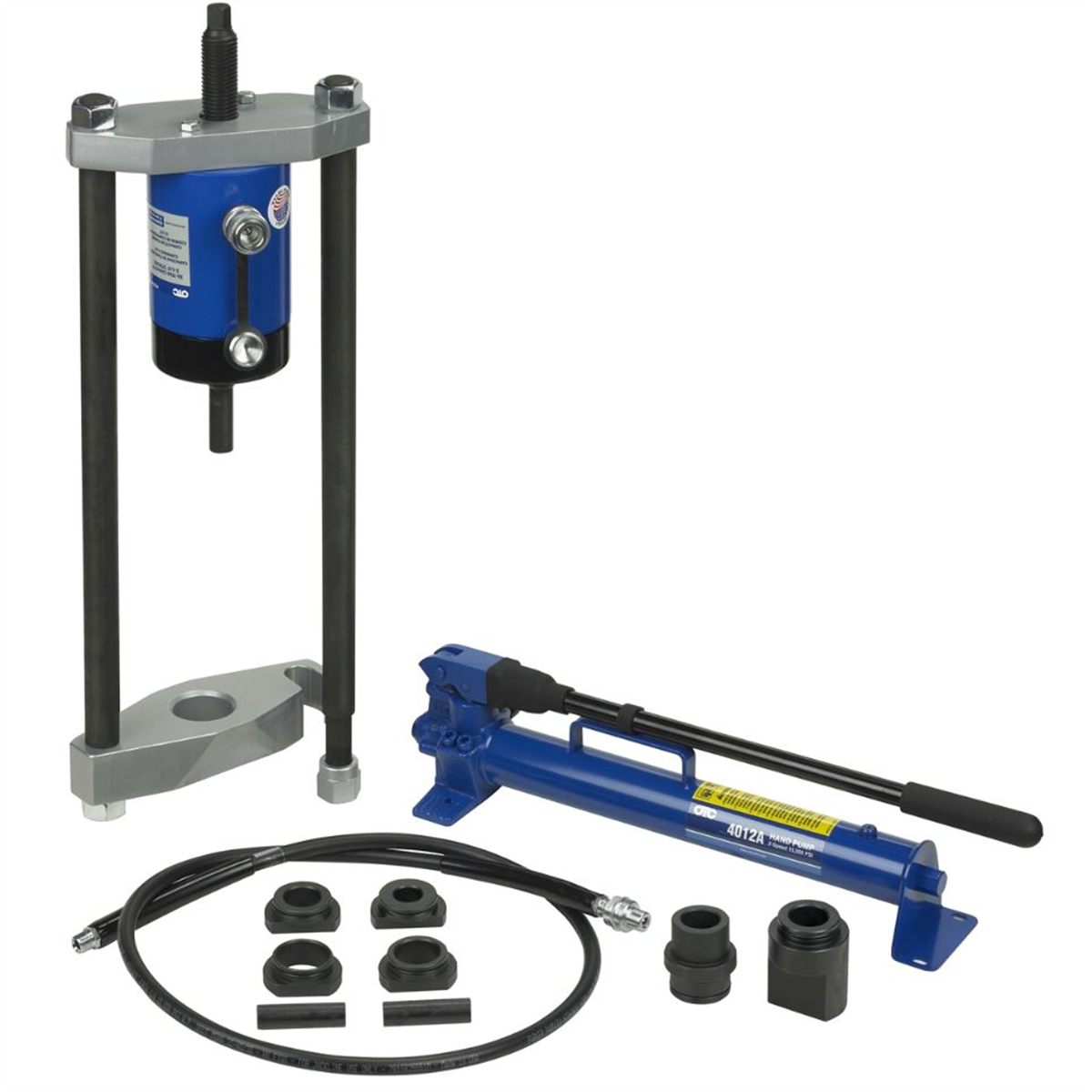

4240A Otc 30 Ton King Pin Pusher Set

Features and Benefits:

• • Hydraulic Hollow Center Cylinder with 30 tons of force makes kingpin and brake anchor pin removal easy
  • Five special collars and two pins allow this product to work on both straight and tapered kingpins
  • Product design accommodates pins from 7/8" to 2" and up to 11-1/4" in length for many models of trucks and buses
  • Cylinder Force Capability: 30 tons
  • Hand Pump Cubic Inches per Stroke: .
  662



The Heavy Duty Kingpin and Brake Anchor Pin Pusher utilizes its cylinder and hydraulic force to replace traditional time-consuming torch and hammer methods.

• It helps get the job done in minutes instead of the better part of a day.
• Five special collars and two pins allow this unit to work on both straight and tapered kingpins.
• It accommodates sizes from 7/8" to 2" in diameter and up to 11-1/4" in length.
• With 30 tons of force, it can push out even the most corroded kingpins.
• The anchor pin can be removed quickly by using the special adapter installed in the pusher's base block and the unit positioned over the brake's spider.
• Included are the OTC4121A-MA hydraulic cylinder and OTC4012A Two-Speed Hand Pump that make the job easy.
