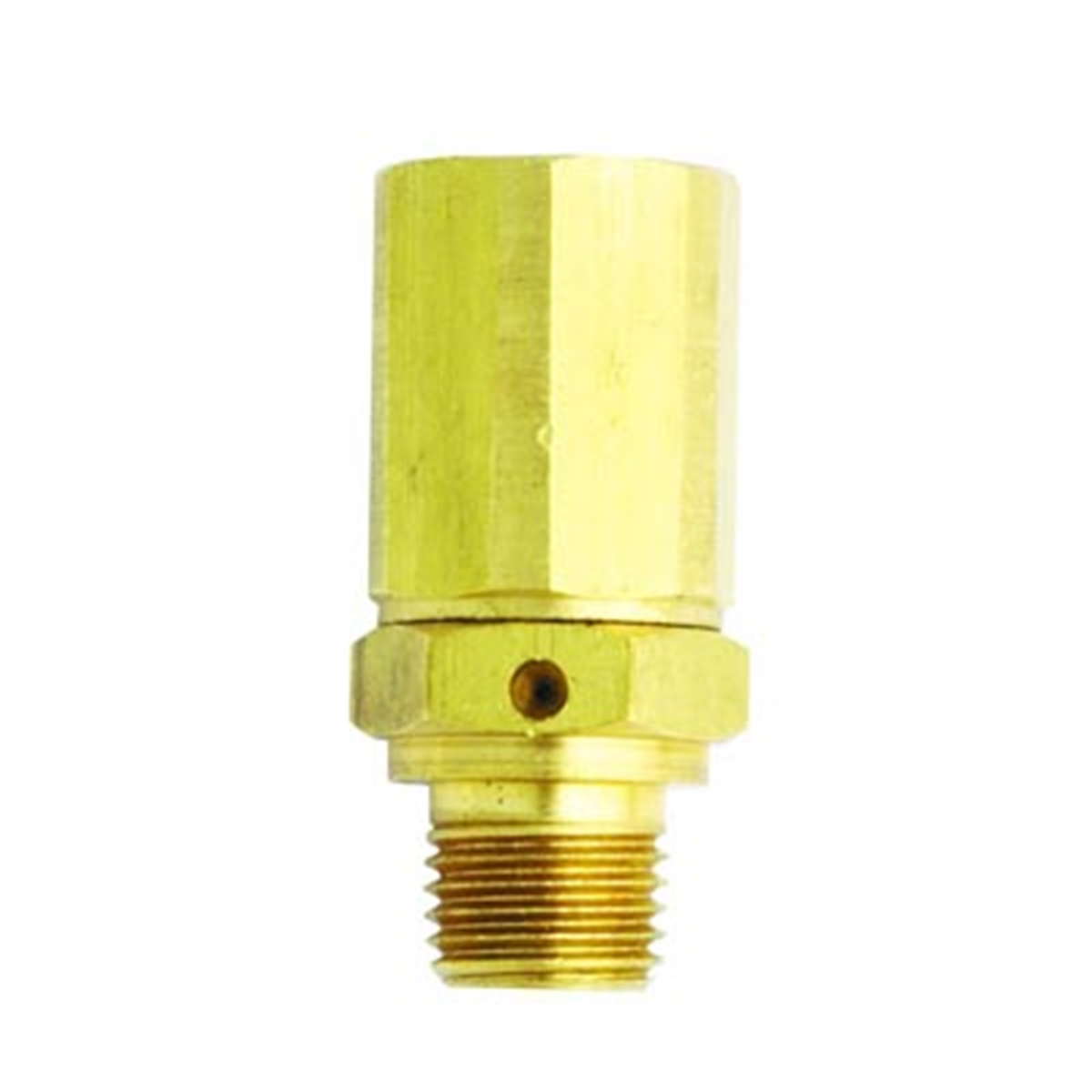

1098-4 Milton Industries Load Genie 1/4" Fnpt In 1/4" Mnpt Out

Features and Benefits:

• • 1/4" female national pipe thread inlet, 1/4" male national pipe thread outlet
  • Offers 1 to 6 standard cubic feet per minute
  • Maximum working pressure of 250 pounds per square inch
  • Maximum recommended temperature of 450 degrees Fahrenheit
  • Maximum recommended compressor speed of 400 rpm

  This load genie has a 1/4" FNPT inlet and a 1/4" MNPT outlet and is used to unload discharge manifold in either a vertical or horizontal position of any compressor when compressor cycles and flow stops.

  • This combination un-loader and check valve is efficient, quiet, economical and eliminates tubing/fittings of conventional pressure switch un-loader.
  • With a maximum of 250 PSI, this load genie comes with a range of 1 to 6 SCFM.
