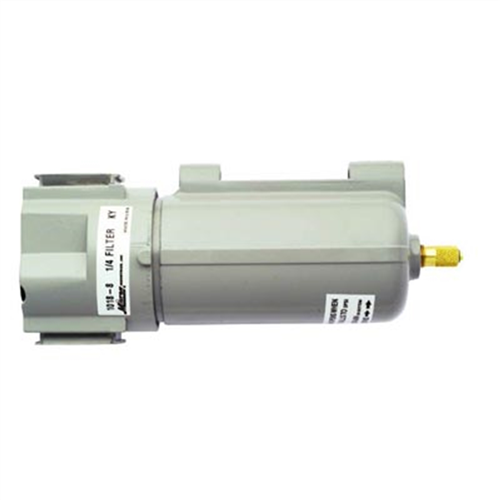

1018-8 Milton Industries Filter 1/4" Npt Metal Bowl

Request us to BEAT a competitor's price. Click Here
1018-8 Milton Industries Filter 1/4" Npt Metal Bowl

Features and Benefits:

• • Maximum pressure of 150 pounds per square inch
  • Maximum of 48 standard cubic feet per minute at 100 pounds per square inch
  • Install upstream from regulators
  • Temperature range of 40 degrees Fahrenheit to 160 degrees Fahrenheit

  This 1/4" NPT Milton micro filter is supplied with pre-assembled internal automatic overnight drain, which will operate when an air supply is shut down or when liquid has gathered in the filter bowl.

  • The included 3 stage baffle system offers exceptional moisture removal.
  • This micro filter includes a porous bronze sintered 40 micron filter element which allows less pressure drops and longer cleaning intervals.
  • Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems and are used as pre-filters to coalescing type filters to ensure high efficiency and long element life.
  • The corrosion resistant metal bowl has a capacity of 6 ounces.
  • Maximum of 250 PSI and 48 SCFM.
  • The included manual overnight drain has two functions; once the pressure drops the water drains from the bottom or it can also rotate the knurled knob on the drain to manually drain the water.
