140239 Jet Ts200-230-010 2T Elec Hst 10' Lft 3Ph

Features and Benefits:

• • 1.
  5 HP, 230V, 3 Phase
• Maximum Lift 10 foot
• Maximum Weight: 2 Tons; 4,400 lbs.
• The 2 in 1 design of the Mechanical Brake and Overload Protection ensure operator safety and extended product life
• Patented gear limit switch ensures the product switches off power instantly in the case of over lifting or lowering position
• DC Motor Brake actuates instantly in the event of a power failure to ensure operator safety
• Two Speed Motor ensures the correct speed for the job with a click of a button
• IP55 TEFC Motor with Class F insulation for working in harsh environments
• 5 Pocket Chain Sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads
• Pendant Control is IP65 rated and is fully water-proof, insulated and impact resistant for years of service
• Built in heat protection will not allow lifting if internal temperatures exceed 285� F (+/-40�).
• Load will be allowed to be lowered until unit cools.
• This saves internal components and extends the life of the product.
• Comes with 10ft power supply cord

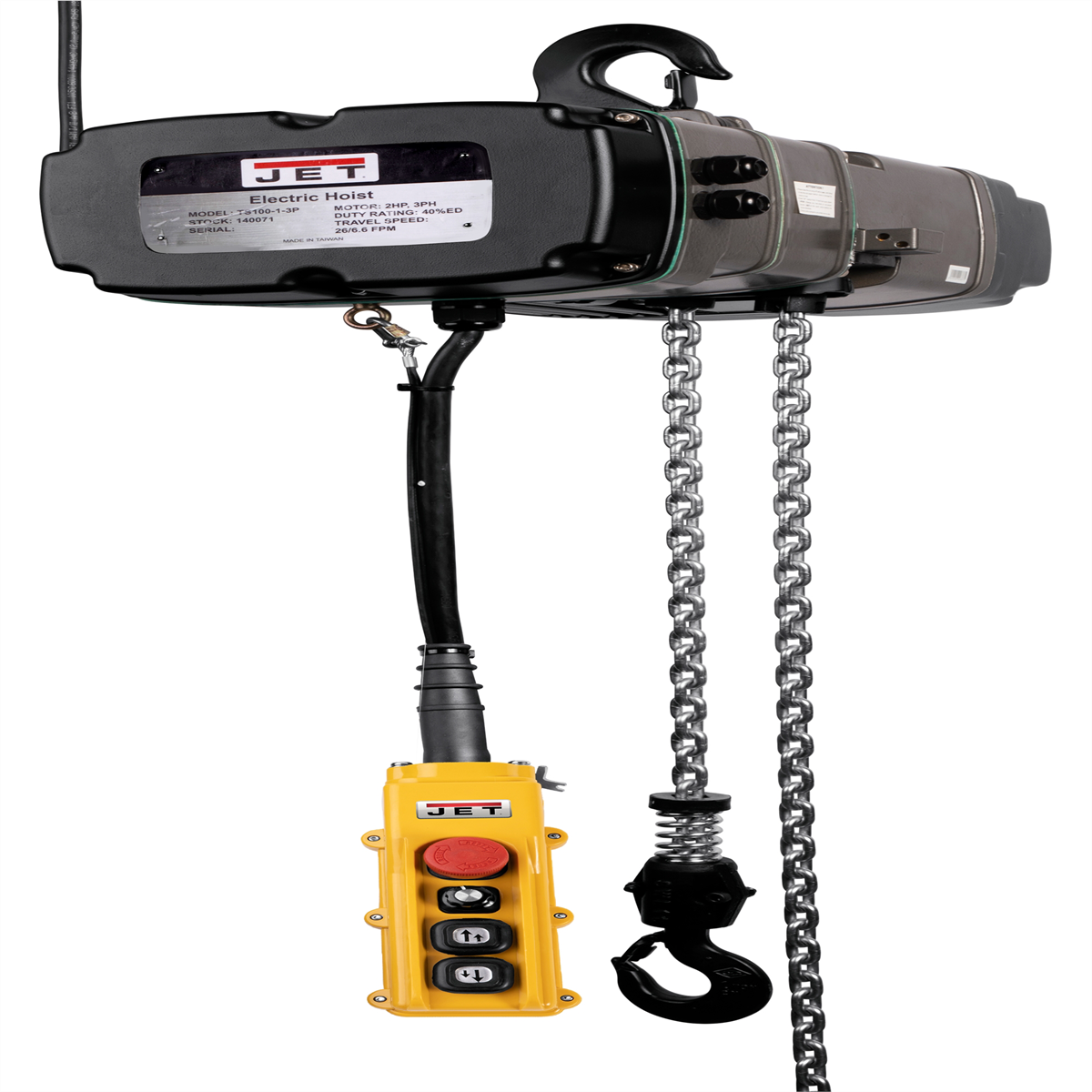

2-Ton Two Speed Electric Chain Hoist 3-Phase 10' Lift; TS200-230-010TS Series Electric Hoist is designed and built for safety, durability, and efficient operation in the toughest industrial applications.

• Designed with two speeds you can move materials quickly and safely.
• Allowing your material to then slow down to be placed exactly where you need it without the excessive bump firing.
• Additionally, a two in one mechanical brake and overload protection assures you of safety first on the jobsite.
• This new system will brake quickly while providing protection from overloading the hoist.
• We engineered this hoist to keep the operator safe and prolong the life of your tool.
• Lastly a patented gear limit switch will allow precise control of the stopping point in both directions.
• This feature will prolong the life of the hoist and help avoid possible damage to the unit.
• All of this with safe lifting speeds up to 33 feet per minute and as low as 3 feet per minute to give you the ability to be more efficient with every load.
