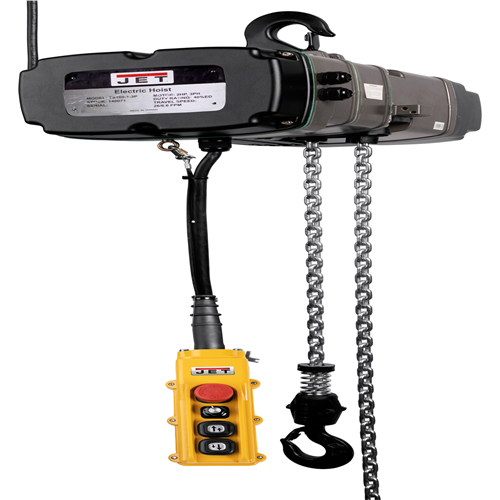

140238 Jet 1-Ton Two Speed Electric Chain Hoist 3-Phase 20' Lift | Ts100-230-020

Request us to BEAT a competitor's price. Click Here
140238 Jet 1-Ton Two Speed Electric Chain Hoist 3-Phase 20' Lift | Ts100-230-020

Features and Benefits:

• • 2 HP, 230 Volt, 3 Phase Motor
  • The 2 in 1 design of the Mechanical Brake and Overload Protection ensure operator safety and extended product life
  • Patented gear limit switch ensures the product switches off power instantly in the case of over lifting or lowering position
  • DC Motor Brake actuates instantly in the event of a power failure to ensure operator safety
  • Two Speed Motor ensures the correct speed for the job with a click of a button
  • IP55 TEFC Motor with Class F insulation for working in harsh environments
  • 5 Pocket Chain Sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads
  • Pendant Control is IP65 rated and is fully water-proof, insulated and impact resistant for years of service
  • Built in heat protection will not allow lifting if internal temperatures exceed 285° F (+/-40°).
  • Load will be allowed to be lowered until unit cools.
  • This saves internal components and extends the life of the product.
  • Comes with 10ft power supply cord
  • Lift 10 Feet
  • Lifting Speed: 26/7 FPM
  • Load Capacity 1 Ton



  1-Ton Two Speed Electric Chain Hoist, 3 Phase, 230 volt, 20 foot Lift.

  • TS Series Electric Hoist is designed and built for safety, durability, and efficient operation in the toughest industrial applications.
  • Designed with two speeds you can move materials quickly and safely.
  • Allowing your material to then slow down to be placed exactly where you need it without the excessive bump firing.
  • Additionally, a two in one mechanical brake and overload protection assures you of safety first on the jobsite.
  • This new system will brake quickly while providing protection from overloading the hoist.
  • We engineered this hoist to keep the operator safe and prolong the life of your tool.
  • Lastly a patented gear limit switch will allow precise control of the stopping point in both directions.
  • This feature will prolong the life of the hoist and help avoid possible damage to the unit.
  • All of this with safe lifting speeds up to 33 feet per minute and as low as 3 feet per minute to give you the ability to be more efficient with every load.
