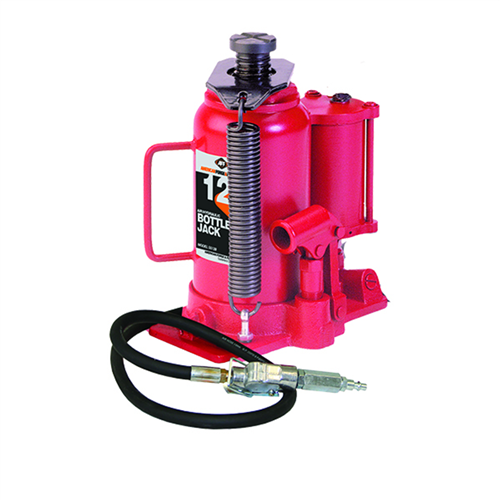

5512B American Forge & Foundry Aff - Bottle Jack - 12 Ton Capacity - Air/Manual
5512B American Forge & Foundry Aff - Bottle Jack - 12 Ton Capacity - Air/Manual



Our Price: $283.24

Stock Status: Out of Stock

Product Code: INT5512B
Qty:

Description Warranty


Request us to BEAT a competitor's price. Click Here
5512B American Forge & Foundry Aff - Bottle Jack - 12 Ton Capacity - Air/Manual

Features and Benefits:

    • Color: Red/Black
    • Product Type: Bottle Jack
    • Capacity (T): 12 Ton
    • Power Type: Hydraulic
    • Operation Type: Air/Manual
    • Minimum Height (in.
    ): 10.
25"
  • Maximum Height (in.
    • ): 19.5"
  • Ram Lift (in.
    • ): 6.75"
  • Extension (in.
    • ): 2.5"
  • Saddle Diameter: 1.
    • 8"
  • Base Length (in.
    • ): 8.6"
  • Base Width (in.
    • ): 6.3"
  • Handle Length (in.
    • ): 16.5"
  • Number of Handle Pieces: 2
  • Oil Reservoir Assembly: Crush Fit
  • Base Type: Drop Forge
  • Release Type: Cross Head Valve
  • Working Air Pressure: 90-150 PSI
  • Duty Level: Heavy Duty
  • Weight (lb.
    • ): 29 Lbs.
  • Certification: ASME/PASE 2019
  • The AFF Heavy-Duty bottle jacks are heat treated in critical stress areas to ensure long life and performance.
  • They are ideal for use in automotive, truck, farming, mining, and much more.
  • Drop forged alloy steel construction for reliable strength.
  • Made with centered pumps and rams with heat treated pistons
  • Saddles are made of machine hardened steel for unsurpassed strength.
  • Built-in bypass system prevents accidental overload and provides added operator safety.
  • Longer wear life due to internally machined oil passages, smooth bearing surfaces and tighter tolerances
  • Operating pressure at 90-180 PSI
  • Dual cylinder return springs.
  • Comes with carrying handle.

    • American Forge & Foundry�s Bottle Jacks include some of the most advanced features available today and provide countless solutions even in the toughest working conditions.

  • Choose from our Heavy-Duty series for standard use or from our Super Duty series for more rigorous applications.

    •
