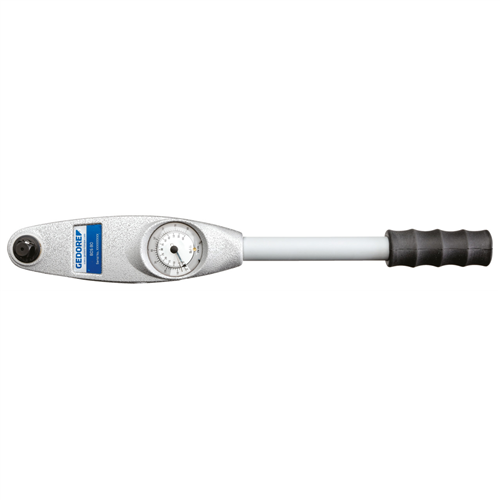

1196804 Gedore Dial Measuring Torque Wrench Type 83; 400-2000 Nm

Features and Benefits:

• • Dial Torque Wrench
  • 400 - 2000 Nm
  • 1" drive
  • Features:�� Dial-indicating torque wrench with dual scale and slave pointer�� Bi-directional tightening�� For controlled screw tightening and torque measurements�� Working accuracy: +/- 4 % tolerance of the indicated torque�� Acc.
  • to DIN EN ISO 6789, traceable to national standards�� With dual scale in N�m and lbf�in or lbf�ft double-tinted clearly readable face�� Integrated overload protection - mechanical stop up to max.
  • 25 % overload of the maximum value�� Housing made of lightweight, robust special aluminium construction - lacquered, silver-grey�� Black, non-slip rubber handgrips�� Models 8301-04 to 8301-40: EPA-conformant (Electrostatic Protected Area),for use in sensitive electrostatic applications�� Audio-visual signal is standard on models 8303-40 to 8305-20Scope of delivery:�� Dial-measuring torque wrench type 83�� Battery (models 8303-40 to 8305-20)�� Test certificate acc.
  • to DIN EN ISO 6789�� Delivered in a sturdy black plastic box (no.
  • 8301-04 to 8302-20), otherwise in sturdycardboard packaging (no.
  • 8303-40 to 8305-20)



  Drive connector square (male): 1", Drive connector square (male): 25 mm, Drive type/drive: Double square, Graduation: 50, Graduation [lbf�ft]: 50 lbf�ft, Net weight [kg]: 16,7 kg, Range of application: ProductionQuality controlMaintenance and repair, REACH registration available: no, Scale division [n-m]: 50 N�m, Target groups: AutomotiveElectronics industryIndustryConstruction and commercial vehiclesMilitaryMechanical engineeringUse: Controlled tightening and verification of tightening values For use in almost all industrial manufacturing areas Dual scale.

  • Dial provides effective measurement in Metric and Imperial torque units in both directions, delivering flexibility and minimising tool investment Features: Dial-indicating torque wrench with dual scale and slave pointer 1/4", 3/8", 1/2", 3/4" or 1" double square drive with ball lock for controlled right and left tightening Versatile usage.
  • Use for Maintenance, Repair, Assembly and Quality Control For controlled screw tightening and torque measurements Display accuracy: +/- 4 % tolerance of the indicated value Acc.
  • to DIN EN ISO 6789, traceable to national standards With dual scale in N�m and lbf�in or lbf�ft double-tinted clearly readable face 5 % overload of the maximum value Housing made of light, robust special aluminium construction - painted silver-grey Black, non-slip rubber handgrips Model No.
  • ADS 4 to No.
  • ADS 40: EPA (Electrostatic Protected Area) compliant, for use in electrostatically sensitive applications With audio-visual signal Test certificate acc.
  • to DIN EN ISO 6789
