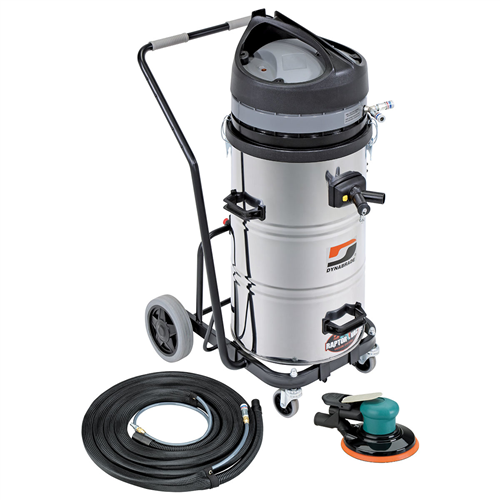

M1010SP Dynabrade Mega-Raptor Vac&Reg; Standard Pack Mobile Auto Vacuum System : Vacuum Kit W/6" Spirit Ros & Standard Cart, M-Class, 120V/60Hz, 15 Amp, 20 Gal., Conductive
M1010SP Dynabrade Mega-Raptor Vac&Reg; Standard Pack Mobile Auto Vacuum System : Vacuum Kit W/6" Spirit Ros & Standard Cart, M-Class, 120V/60Hz, 15 Amp, 20 Gal., Conductive

Our Price: $2,502.77


Product Code: DYBM1010SP
Qty:

Description Warranty


Request us to BEAT a competitor's price. Click Here
M1010SP Dynabrade Mega-Raptor Vac&Reg; Standard Pack Mobile Auto Vacuum System : Vacuum Kit W/6" Spirit Ros & Standard Cart, M-Class, 120V/60Hz, 15 Amp, 20 Gal., Conductive

Features and Benefits:

    • Designed for general source capture and dry cleanup.
    • 7.
    8' (238 cm) water static lift
  • 125 CFM (3,3521 L/Min) vacuum flow.
  • Allows operation of two tools simultaneously.
  • Vacuum starts automatically with startup of tool.
  • Bypass Motor System uses environmental air to cool the motor and extend vacuum life.
  • Heavy-duty stainless steel recovery tank, with 20 gallon (78 liter) capacity for clean filter assurance.
  • This size allows filter to remain at substantial distance from collected debris, reducing clogging and extending motor life.
Includes a HEPA H13 Filter with 99.95 % efficiency on 0.3 micron.
  • Automatic cleaning of filter.
  • By connecting vacuum unit to external air supply, a blast of air is released to filter every 40 seconds of operation, to cyclically clean filter.
  • Handy electric outlet on motor head allows for additional versatility in workplace.
  • Convenient orange warning light indicates that filter needs replacement.
  • Red warning light indicates protection device has been activated to prevent heat overload to motor.
  • Connects to optional 61483 Cart.
  • This unit requires a 15 Amp (15,000 mA) outlet and has no accessory outlet on unit.
    • USA & Canada Certifications: UL Listed, M-Class.European Certifications: CE, EAC, M-Class.

    Dynabrade�s Mega-Raptor Vacs are a performance upgrade from our previous Mini-Raptor offering.

  • These M-Class vacuums feature 2-stage filtration that captures materials down to 0.
    • 3 microns.The large 20 gallon capacity leads to fewer bag changes.
  • Powerful enough to simultaneously support two operators with Auto on/off for pneumatic tools.
  • Built in overload protection will shut downsystem and provides the insurance of intended motor life.
  • Air inlets designed to provide the proper air power to the tools in a pneumatic platform.
  • Auto Filter Cleaning using compressed air blaststhrough filter every 40 seconds, insuring proper designed flow through the life of the system.
  • Reduced Air Flow indicator prompts filter, hose or bag maintenance.
  • Settings available for single ordual operator efficiency selection.
  • At 73 dBA these vacuums are significantly quieter than previous Mini-Raptor vacuums.
  • Designed only for dry operation.

    •
