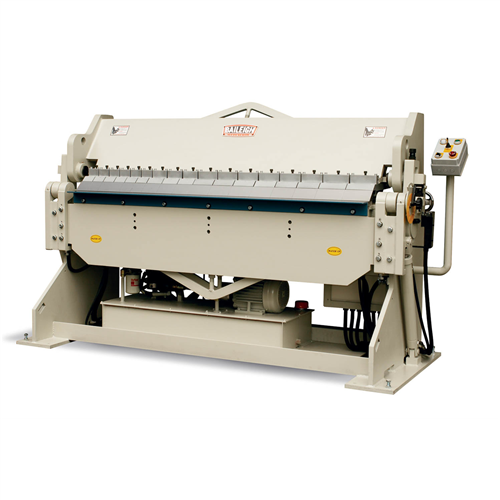

1021002 Baileigh 6' 10 Gauge Hydr Box And Pan Brake
1021002 Baileigh 6' 10 Gauge Hydr Box And Pan Brake

Our Price: $39,018.21
Sale Price: $33,472.00


Product Code: BLI1021002
Special order,Email [email protected] for availability.

Description Warranty


Request us to BEAT a competitor's price. Click Here
1021002 Baileigh 6' 10 Gauge Hydr Box And Pan Brake

Features and Benefits:

  • •Maximum bend angle of135°.
•1”beam adjustment.•Box and pan brake made with top-qualityindustrial-grade hydraulicsfor reliability over many years of use.•You can operate the hydraulic system inmanual or semi-automatic modeto lift the leaf.•Adjustable bend auto-stopmakes production runs more efficient and ensures repeatability.•5 hp motorcontrols all hydraulic functions and runs on220-volt 3-phasepower.•Hydraulic motor attached to a camlifts and clamps the beam to deliver the extreme pressure required to bend 10 gauge mild steel.•Includes17 hardened 3-piece fingers(6 of 3", 3 of 4", 6 of 5", and 2 of 6") to adjust for just about any size box or pan.•6”maximum box depth.The BB-7210H hydraulic sheet metal box and pan brake can bend10 gauge mild steelsheet metal across itsfull 6-foot (72”) length.
  • It also handles smaller gauges just as easily.
    •
