1004134 Baileigh Exhaust Bender/Swager 220V 1Ph
1004134 Baileigh Exhaust Bender/Swager 220V 1Ph

Our Price: $19,233.41
Sale Price: $15,219.00


Product Code: BLI1004134
Special order,Email [email protected] for availability.

Description Warranty


Request us to BEAT a competitor's price. Click Here

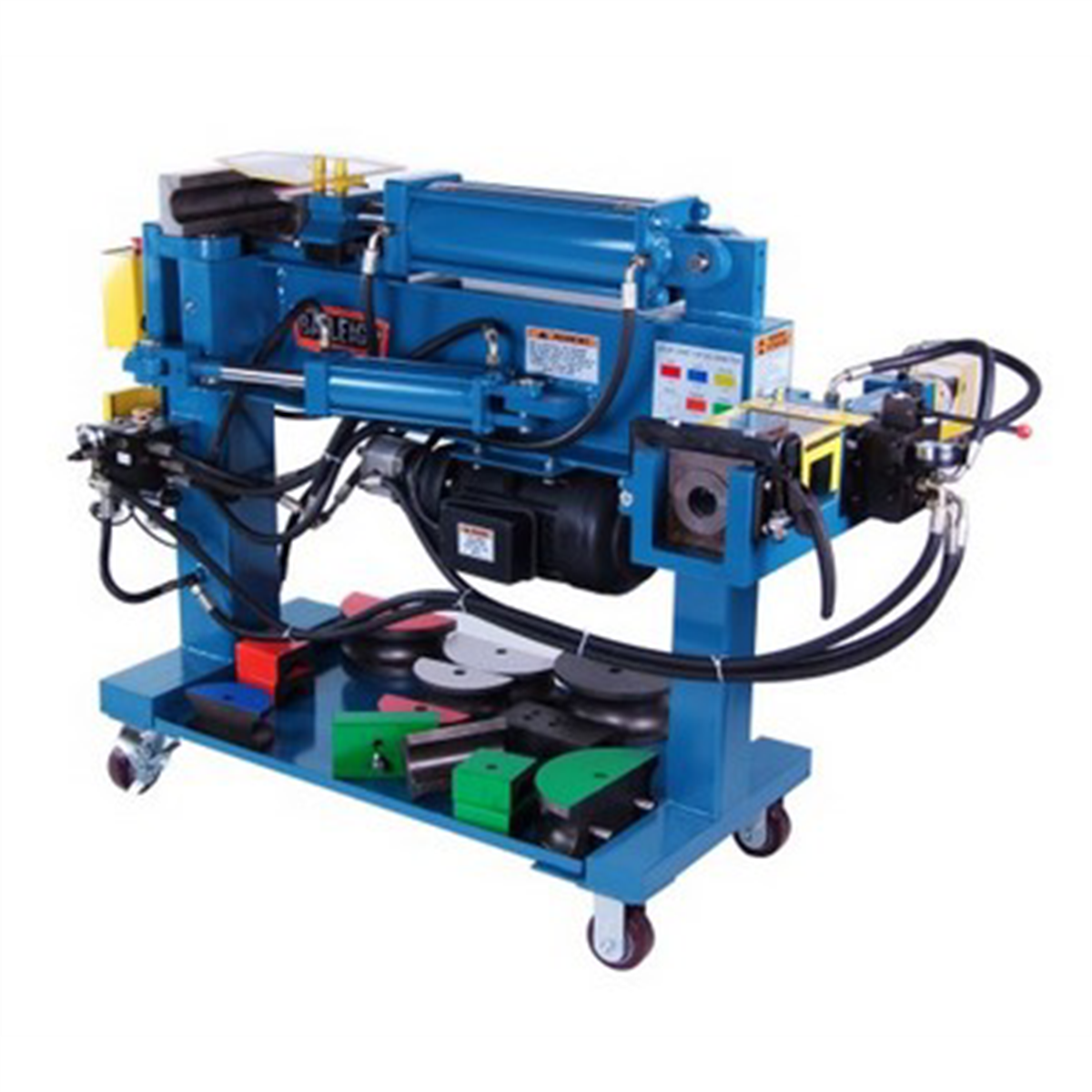

1004134 Baileigh Exhaust Bender/Swager 220V 1Ph

Features and Benefits:

  • �For bending, the EB-300 exhaust bender comes with standard radius tooling from 1-1/2" up to 3" OD (for 2-1/4 to 3” OD tubing 12 gauge mild steel wall thickness is required).
�The EB-300 exhaust pipe bender is considered a compression bender as it uses one large hydraulic ram to push the inside radius die into the compression assisted outside counter dies.�The outside dies have two hydraulic cylinders that applies pressure at the point of bend on the inside radius die.�The end result is that the machine can bend light gauge tubing without folding the material in half.�The EB-300 exhaust pipe bender requires 220 volts of single phase power is operated using knee controls, allowing hands to be kept free for material control.�This exhaust tube bender also comes equipped with tube end forming station.�This station includes tooling to expand, flare and swage the tubing.
  • It also allows the operator to create ball joints and flanges.
    • �The EB-300 exhaust tube bender comes filled with hydraulic fluid and has an oil sight glass to ensure the proper level is maintained at all times.�A useful tooling tray is standard as well so the tooling stays with the machine instead of getting lost in a busy auto shop.�Baileigh Industrial exhaust pipe benders are well built to last for decades of profitable production.
  • For more information contact a Baileigh Industrial representative.
    • Have an automotive repair shop that is constantly outsourcing your exhaust jobs because you don�t have the right tube bender for the job? If that is the case look, at theEB-300 exhaust benderfrom Baileigh Industrial.
  • This just might be tool you need to add profitability back to your jobs.
  • The EB-300 exhaust pipe bender comes with everything you need to get started.
    •
