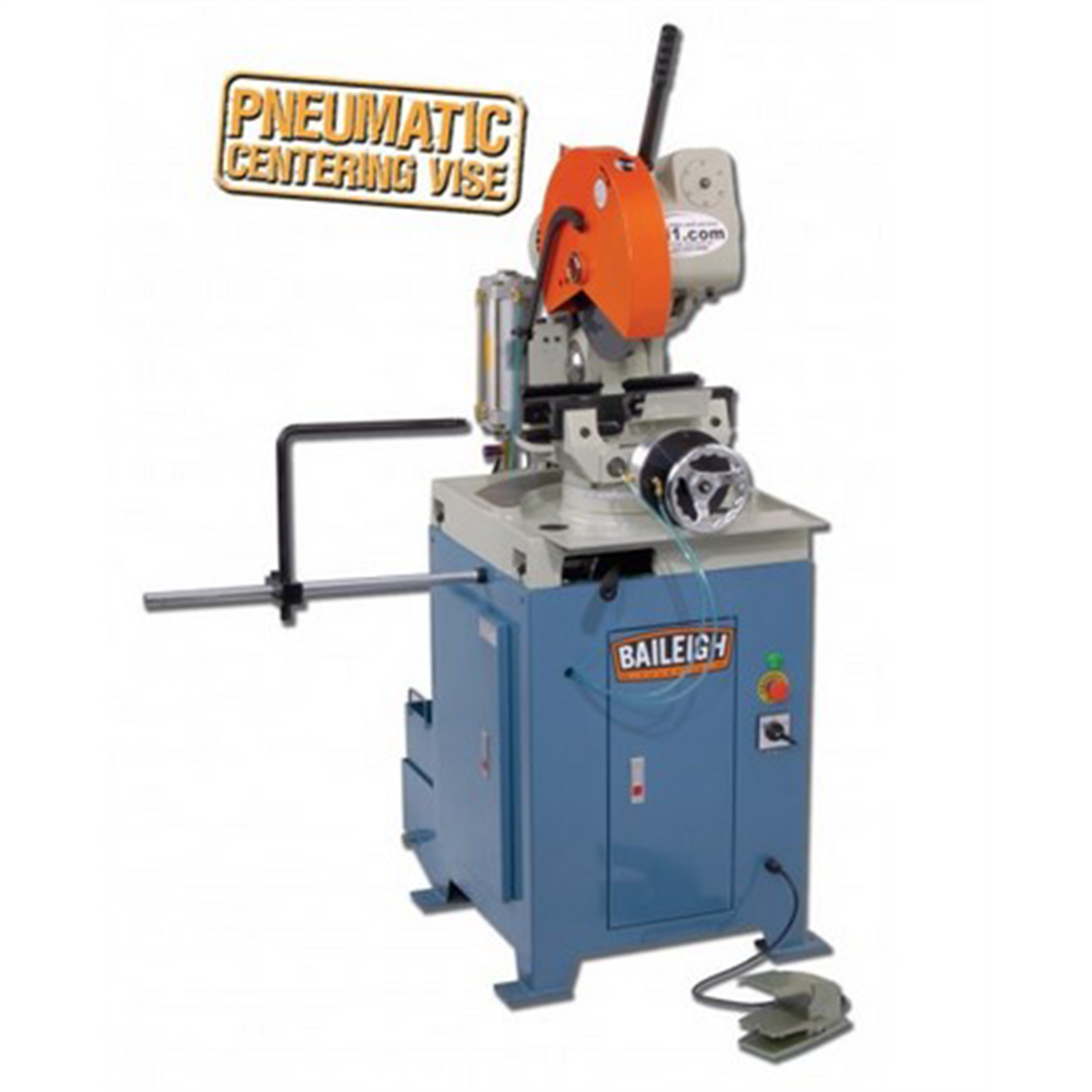

1002578 Baileigh 220V 60Hz 3Ph 4Hp Semi-Auto Cold Saw 14"
1002578 Baileigh 220V 60Hz 3Ph 4Hp Semi-Auto Cold Saw 14"

Our Price: $20,130.98
Sale Price: $14,829.00


Product Code: BLI1002578
Special order,Email [email protected] for availability.

Description Warranty


Request us to BEAT a competitor's price. Click Here
1002578 Baileigh 220V 60Hz 3Ph 4Hp Semi-Auto Cold Saw 14"

Features and Benefits:

Accepts a massive14” blade.
  • 4.
    • 33” round tubecapacity at 90°.
  • You can switch between2 speeds, 26 and 52 rpm, depending on your material.
  • 4 hpmotor runs the direct-drive blade and requires220-volt 3-phasepower.
  • Miters45° rightand90° left, which is important if you have any slotting applications.
  • Rigid cast iron headminimizes vibrations so that the blade gives you high-quality cuts—and will for many years to come.
  • Ground and hardenedall-metal gears in blade headensure tight tolerances throughout the life of the saw.
  • Backlash adjustmentallows you to tighten the gears when needed and keep the saw accurate.
  • Design adds semi-automatic features to our manual CS-350M, which has proven itselfone of the best production saws available.
  • Semi-automatic system issimple to operate.
  • Simply put the material in the vise and push thefoot pedaldown.
  • The saw handles the rest.
  • The blade starts, descends, cuts, andreturns on its own.
  • Once the cut is complete the blade will shut off and the head will raise back up.
  • Air-powered vise, controlled by the foot pedal, clamps the material with jaws on both sides.
  • American-style vise is self-centering.
  • It keeps the material in the right position for the blade, so you don’t have to worry about different material diameters.
  • Steelstop rodallows you to cut repeatable lengths conveniently.
  • Rigidcast iron saw basemaintains accuracy and high cut quality by preventing the blade from wobbling.
  • Durable folded steel standputs the machine at a comfortable working height.
  • Flood coolant systemlubricates the blade and helps it deliver clean, precise cuts, like only a cold saw can.
  • Integrated coolant systemmakes blades longer, so you spend less on replacements.
  • It also prolongs the lifespan of saw itself.
    •
