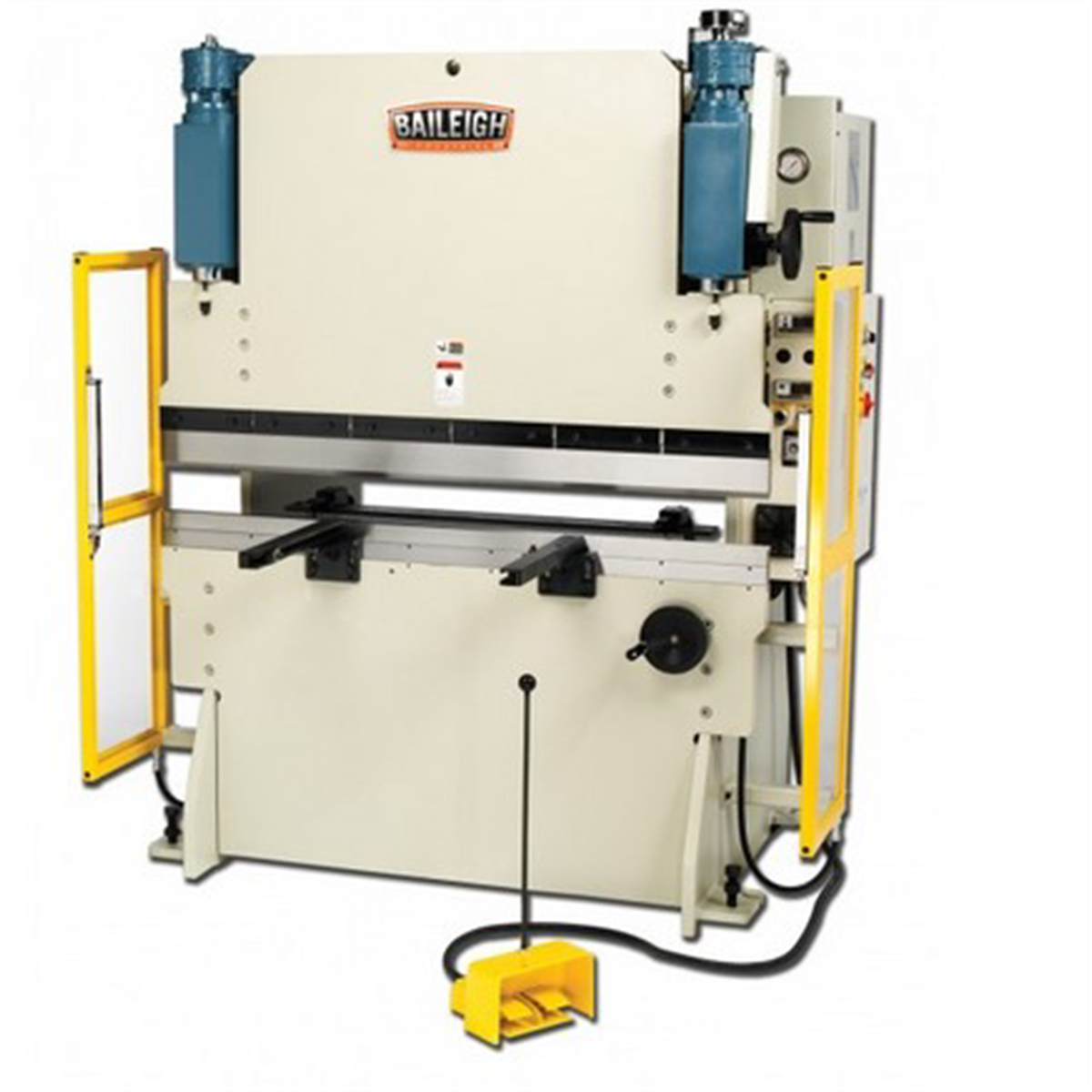

1000803 Baileigh 33 Ton 60In Hydr Press Break 220V 1 Ph
1000803 Baileigh 33 Ton 60In Hydr Press Break 220V 1 Ph

Our Price: $57,700.29
Sale Price: $42,399.00


Product Code: BLI1000803
Special order,Email [email protected] for availability.

Description Warranty


Request us to BEAT a competitor's price. Click Here
1000803 Baileigh 33 Ton 60In Hydr Press Break 220V 1 Ph

Features and Benefits:

Produces up to33 tonsof pressure.
  • Bends sheet metal up to61” wide.
  • Maximum capacity of.
    • 078” thick sheet metalacross the machine’s full width.
  • 3 hpmain motor requires220-volt 3-phasepower.
  • Runs in3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production.
  • 2 encoder-controlled hydraulic cylindersmove the top beam.
  • Digital readout (DRO)displays the position of the downward stroke, so you can fine-tune a bend and make it right every time.
  • It takes a just few seconds tochange the top beam pressureand the top position of the stroke (for more or less travel).
  • You can set atimer for bend delay to hold the beam downat the bottom of the stroke, so the bend keeps its shape.
  • 2 hand wheels let youadjust the position of the beam and back gaugefor consistency across the entire width of the beam.
  • Foot pedalbrings the stroke up and down, leaving your hands free to position the material.
  • Motorized back gaugerides on a solid ball screw trolley mechanism.
  • Back gauge encoder shows its position onits own DRO.
  • Parallel mechanism on the beamsynchronizes the top and bottom dieto deliver better quality bends across the entire width of the machine.
  • Heavy electrowelded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years.
  • Rugged3,300-pound constructionsupports the hydraulic pressure, so the machine stays strong at full capacity.
  • Upper beam rides on ahardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke.
  • Includes aset of hardened single-Vee American tooling.
  • Accepts standard press brake tooling, giving you a wide variety of options.
    •
