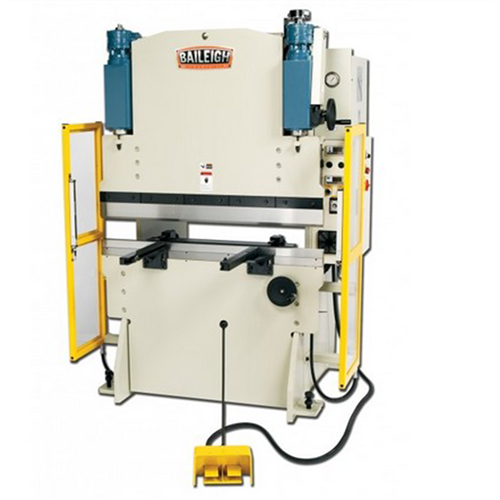

1000801 Baileigh 33 Ton 50In Hydr Press Break 220V 3 Ph
1000801 Baileigh 33 Ton 50In Hydr Press Break 220V 3 Ph

Our Price: $51,160.91
Sale Price: $37,439.00


Product Code: BLI1000801
Special order,Email [email protected] for availability.

Description Warranty


Request us to BEAT a competitor's price. Click Here
1000801 Baileigh 33 Ton 50In Hydr Press Break 220V 3 Ph

Features and Benefits:

Produces up to33 tonsof pressure.
  • Bends sheet metal up to50” wide.
  • Maximum capacity of.
    • 098” thick sheet metalacross the machine’s full width.
  • Requires220-volt 3-phasepower.
  • Runs in3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production.
  • 2 encoder-controlled hydraulic cylindersmove the top beam.
  • Digital readout (DRO)displays the position of the downward stroke, so you can fine-tune a bend and make it right every time.
  • It takes a just few seconds tochange the top beam pressureand the top position of the stroke (for more or less travel).
  • You can set atimer for bend delay to hold the beam downat the bottom of the stroke, so the bend keeps its shape.
  • 2 hand wheels let youadjust the position of the beam and back gaugefor consistency across the entire width of the beam.
  • Foot pedalbrings the stroke up and down, leaving your hands free to position the material.
  • Motorized back gaugerides on a solid ball screw trolley mechanism.
  • Back gauge encoder shows its position onits own DRO.
  • Parallel mechanism on the beamsynchronizes the top and bottom dieto deliver better quality bends across the entire width of the machine.
  • You can train your staff to use this press brake in5 minutes.
  • Heavy electrowelded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years.
  • Robust2,640-pound constructionsupports the hydraulic pressure, so the machine won’t buckle at full capacity.
  • Upper beam rides on ahardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke.
  • Includes aset of hardened single-Vee American tooling.
    •
