TCWB-COMBO4-FPD Atlas Automotive Equipment Atlas Tc755Ez & Wb49-2-Pro Combo Package

Our Price: $8,186.25

Availability:: Drop ships from the manufacturer. Lead times will vary
Product Code: ATETCWB-COMBO4-FPD

Qty:

Description

Warranty

Request us to BEAT a competitor's price. Click Here
TCWB-COMBO4-FPD Atlas Automotive Equipment Atlas Tc755Ez & Wb49-2-Pro Combo Package

Features and Benefits:

Tire Changer & Wheel Balancer Combo Package:

Atlas® TC755EZ Tire Changer

Tilt-Back Column Tire Changer
Rim-Clamp Style
EZ Assist Arm Included
Extra-Large turntable, more clearance
Air operated jaws & bead breaker (external air supply required)
Electric turntable
Adjustable jaws, three mounting positions
Button-Controlled Bead Breaker (operated at blade)
Metal mount/demount head w/ metal roller or replaceable plastic inserts
Column mounted inflator box w/ gauge Included
Filter/Regulator/Lubricator Included
20" Tire Tool Included
Lube Bucket with Brush Included
Set of Large Plastic Jaw Covers Included
Plastic Cover for Bead Breaker Shovel Included
Multiple Replacement Plastic Inserts for M/D Head Included
Built in "Beadblaster"

Atlas® WB49-2-PRO Wheel Balancer

Computer Controlled Motorized Spin Balancer
Raised, Easy to Read Display
Large Wheel Weight Tray
Automatic 3D Data Entry (Special Gauge for Width Measurment Included)
Split-Weight Function for hiding weights behind spokes
Automatic LED Light
Auto-Positioning
Automatic and pedal operated brake.
Automatic start/stop when hood is lowered/raised.
Static and dynamic balancing modes.
Rapid optimization (OPT)
Self-Diagnosing and Self-calibrating
Exceptional stability in reading the unbalance between planes.
Display in grams or ounces, and in mm or inches.
No anchor-down installation needed
Includes Plastic Quick-Relase Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers

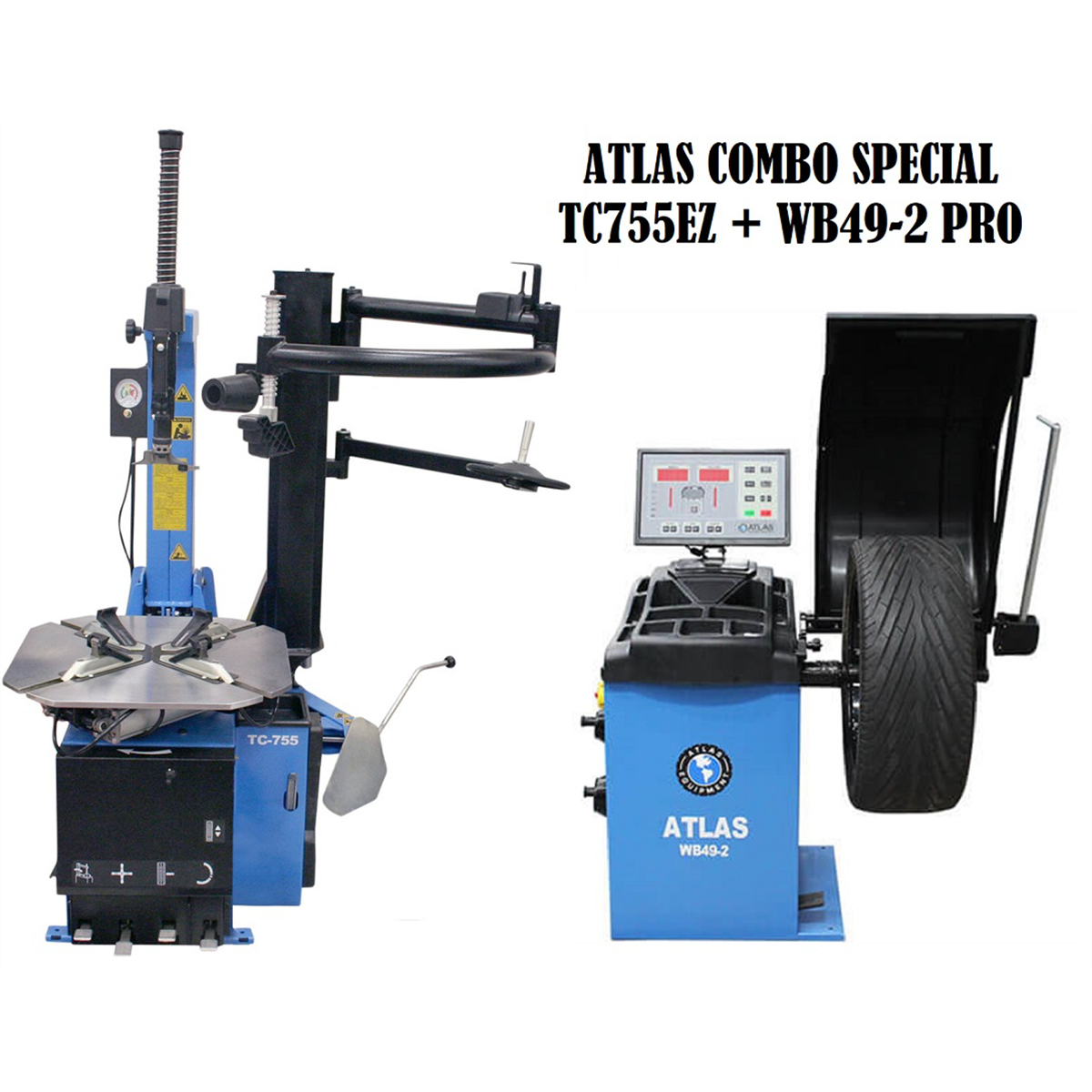

This combination package includes the Atlas® TC755EZ rim-clamp tilt-back tire changer with assist arm & the Atlas® WB49-2-PRO computerized spin balancer.

This combination is perfect for commercial shops looking to handle a large volume of wheels daily as well as being able to change and balance custom, high-end wheels.

Both machines are 110volt operated, both are CE approved, and both carry the Atlas® 1 year parts only warranty.

This part number is FREIGHT PREPAID.

Atlas® TC755EZ Specifications

External Locking Rim Dimensions (From Narrow Position to Wide Position): 11 7/8" to 27 7/8"
Internal Locking Rim Dimensions (From Narrow Position to Wide Position): 13 7/8" to 29 7/8"
Maximum Tire Diameter: 47"
Maximum Wheel Width (Bead Breaker): 18"
Table Motor: 1 HP
Turntable Rotating Torque: 885 ft/lbs.
Bead Breaker: 5500 LB.
Force
Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
Electric Requirement: 110volt
Shipping Weight: 700 lbs

Atlas® WB49-2-PRO Specifications

Max Tire Diameter: 39"
Rim Sizes (Cars & Light Trucks): 10" - 32" (Manual Data Entry May be Required over 23")
Rim Width: 1 1/2" - 20"
Shaft Size: 40mm
Max Wheel Weight: 150 lbs.
Balancing Speed: 150 rpm
Data Entry: Automatic 3D
Measurement: Standard or Metric
Accuracy: 1 gram
Weight Position Resolution: 1.

4 Degrees

Self Calibrating: YES

Motor: 1/4 Horsepower

Electric Requirement: 110volt

Shipping Weight: 400 lbs
