9000 LB OVERHEAD 2-POST LIFT

Request us to BEAT a competitor's price. Click Here
9000 LB OVERHEAD 2-POST LIFT

Features and Benefits:

Features and Benefits:

• 9,000 lb. Capacity
• Overhead, Open-Floor Lift
• Single-Piece Column Design
• Overall Height: 142? (11? 10?)
• 3-Stage Front Arms/2-Stage Rear Arms
• Automatic Arm Restraints
• Single-Point Lock Release
• Rubber Guards on Carriages
• Dual Hydraulic Chain-Drive Cylinders
• Free 12 Piece Truck Adapter Set
• Mounting Hardware Included
• Shipping Weight: 1,430 lbs.
• 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
• This part number FREIGHT PREPAID

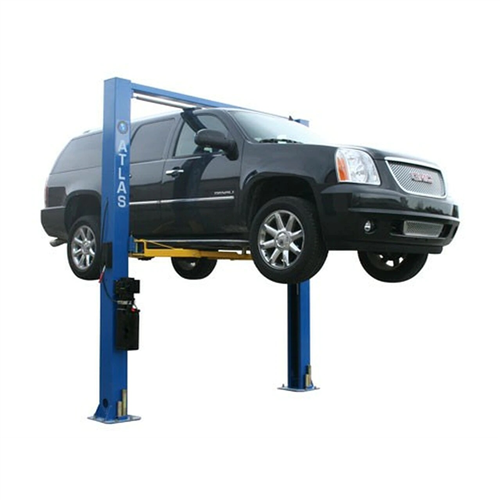

The Atlas® 9OHSC two post above ground lift is the perfect choice for those smaller commercial repair facilities or “Mr. Homeowners” who demand the highest quality at the absolute best price. The 9OHSC is a TRUE 9,000 lb. capacity two post lift that offers a great value to the customer.

The Atlas® 9OHSC is engineered and manufactured to lift vehicles ranging from Smart Cars® to a Suburban®. The 9OHSC incorporates a single piece 11 10” formed column and an extra-long carriage that provides maximum column and arm strength to lift and support a 9,000 lb. vehicle.

The Atlas® 9OHSC has single piece columns and extra-long carriages to ensure years of trouble free service. The single piece columns require the customer to have a ceiling of at least 12 feet to stand up the column.

Atlas® ATTD-9OHSC-SS Specifications

• Capacity9,000 LB.
• Overall Height 142" (11 10")
• Overall Floor Width133 1/2" (11 1 1/2")
• Outside Column to Outside Column 125 1/2" (10 5 1/2")
• Maximum Lift Height (Without Adapters) 76 3/4"
• Maximum Lift Height (With Adapters) 87 3/4"
• Minimum Arm Height 4"
• Inside Column 109 1/2” (9 1 1/2”)
• Drive Thru 100 1/2” (8 4 1/2”)
• Column Size 8" x 9 3/8"
• Column Thickness of Steel 5mm
• Base Of Lift 16 3/4" x 17 3/4"
• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,430 LBS.
• Adapter Heights 4 Each 2”, 3”, 6”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 4" of concrete with a 3000 psi. rating
