ATTD-9OHSC-COMBO-FPD Atlas Automotive Equipment Atlas 9Ohsc And Lawn Mower Adapter Combo
ATTD-9OHSC-COMBO-FPD Atlas Automotive Equipment Atlas 9Ohsc And Lawn Mower Adapter Combo

Our Price: $6,311.25


Availability:: Drop ships from the manufacturer. Lead times will vary
Product Code: ATEATTD-9OHSC-COMBO-FPD
Qty:

Description Warranty


Request us to BEAT a competitor's price. Click Here

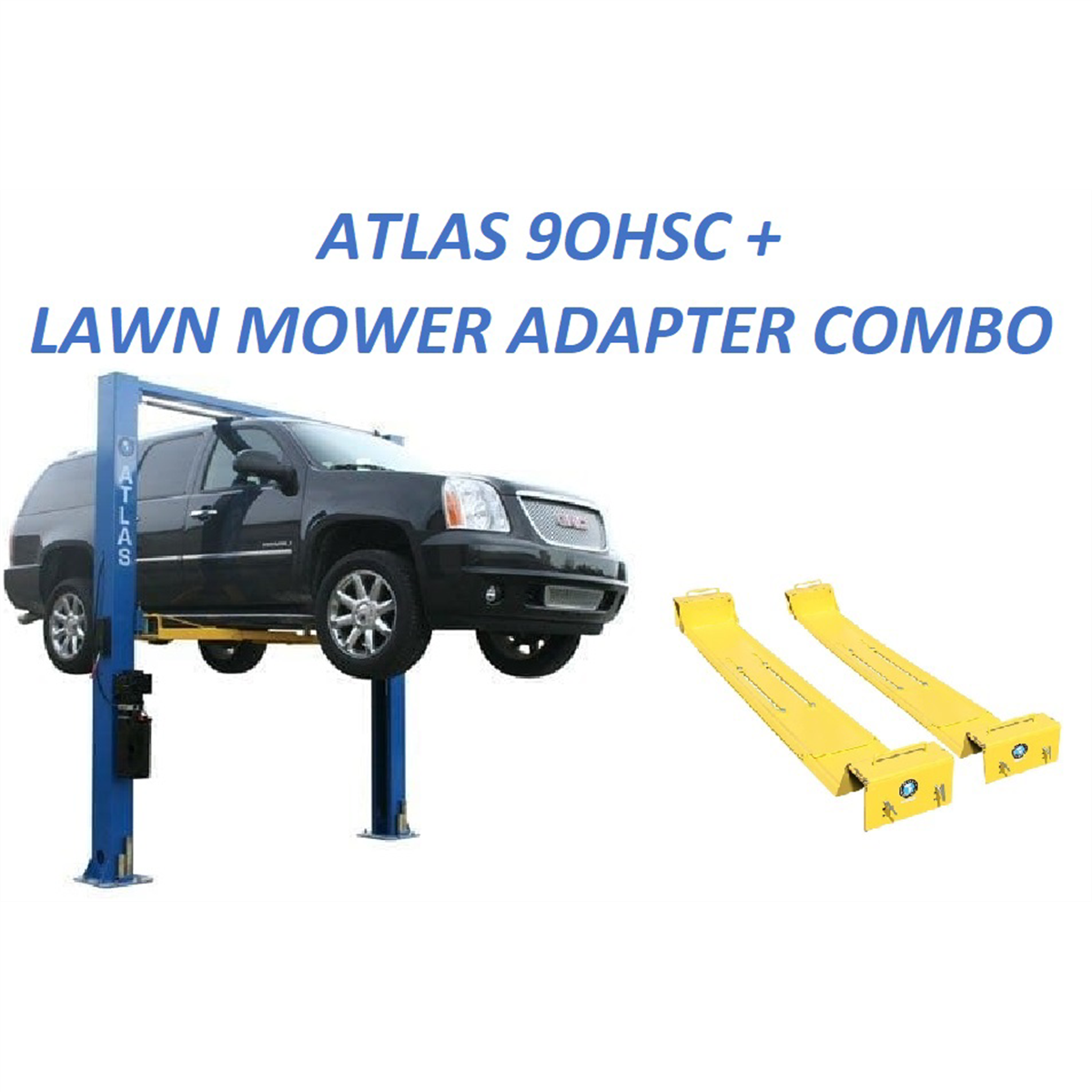

ATTD-9OHSC-COMBO-FPD Atlas Automotive Equipment Atlas 9Ohsc And Lawn Mower Adapter Combo

Features and Benefits:

    • Combo includes 9OHSC 9,000 lb.
    • capacity lift and Lawn Mower Adapter
    • Overhead, Open-Floor Lift
    • Single-Piece Column Design
    • Overall Height: 142? (11? 10?)
    • 3-Stage Front Arms/2-Stage Rear Arms
    • Automatic Arm Restraints
    • Single-Point Lock Release
    • Rubber Guards on Carriages
    • Dual Hydraulic Chain-Drive Cylinders
    • Free 12 Piece Truck Adapter Set
    • Mounting Hardware Included
    • This part number FREIGHT PREPAID

    The Atlas® 9OHSC two post above ground lift is the perfect choice for those smaller commercial repair facilities or “Mr.

  • Homeowners” who demand the highest quality at the absolute best price.
  • The 9OHSC is a TRUE 9,000 lb.
  • capacity two post lift that offers a great value to the customer.

The Atlas® 9OHSC is engineered and manufactured to lift vehicles ranging from Smart Cars® to a Suburban®.

  • The 9OHSC incorporates a single piece 11� 10” formed column and an extra-long carriage that provides maximum column and arm strength to lift and support a 9,000 lb.
  • vehicle.

    • The Atlas® 9OHSC has single piece columns and extra-long carriages to ensure years of trouble free service.

  • The single piece columns require the customer to have a ceiling of at least 12 feet to stand up the column.

    • This combo includes the Atlas® Lawn Mower Adapter or LMA.

  • The LMA allows the user to raise lawn tractors, ATV's, UTV's, golf carts, and other small vechicles.
  • NOTE: the capacity of the adapter when used on the 9OHSC is less then 9,000 lbs.
  • If you have questions about the LMA and it's capabilities please contact a sales rep.

    • Atlas® ATTD-9OHSC-SS Specifications

    • Capacity9,000 LB.
    • Overall Height 142" (11� 10")
    • Overall Floor Width133 1/2" (11� 1 1/2")
    • Outside Column to Outside Column 125 1/2" (10� 5 1/2")
    • Maximum Lift Height (Without Adapters) 76 3/4"
    • Maximum Lift Height (With Adapters) 87 3/4"
    • Minimum Arm Height 4"
    • Inside Column 109 1/2” (9� 1 1/2”)
    • Drive Thru 100 1/2” (8� 4 1/2”)
    • Column Size 8" x 9 3/8"
    • Column Thickness of Steel 5mm
    • Base Of Lift 16 3/4" x 17 3/4"
    • Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
    • Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
    • Shipping Weight 1,430 LBS.
    • Adapter Heights 4 Each 2”, 3”, 6”
    • Arm Hole/Adapter Peg Size 1.
    5”
  • Requires a minimum of 4" of concrete with a 3000 psi.
  • rating

    The Atlas® LMA Specifications (VARY BY LIFT AND WHEELBASE):

    • Capacity: Up to 5,000 lbs
    • Adjusts in Width: 8' to 11'
    • Wheel Base: 32" to 90"
    • Wheel Well Width: 12"
    • Thickness of Steel: 3/16"
    • Shipping Weight: 600 lbs.
    • Will fit lift arms up to 5 1/2" wide

    		•
