ATTD-12AWFSL-COMBO-FPD Atlas Automotive Equipment Atlas 12Awfsl & Rj-6 Alignment Combo
ATTD-12AWFSL-COMBO-FPD Atlas Automotive Equipment Atlas 12Awfsl & Rj-6 Alignment Combo

Our Price: $21,436.25


Availability:: Drop ships from the manufacturer. Lead times will vary
Product Code: ATEATTD-12AWFSL-COMBO-FPD
Qty:

Description Warranty


Request us to BEAT a competitor's price. Click Here
ATTD-12AWFSL-COMBO-FPD Atlas Automotive Equipment Atlas 12Awfsl & Rj-6 Alignment Combo

Features and Benefits:

Features & Benefits:

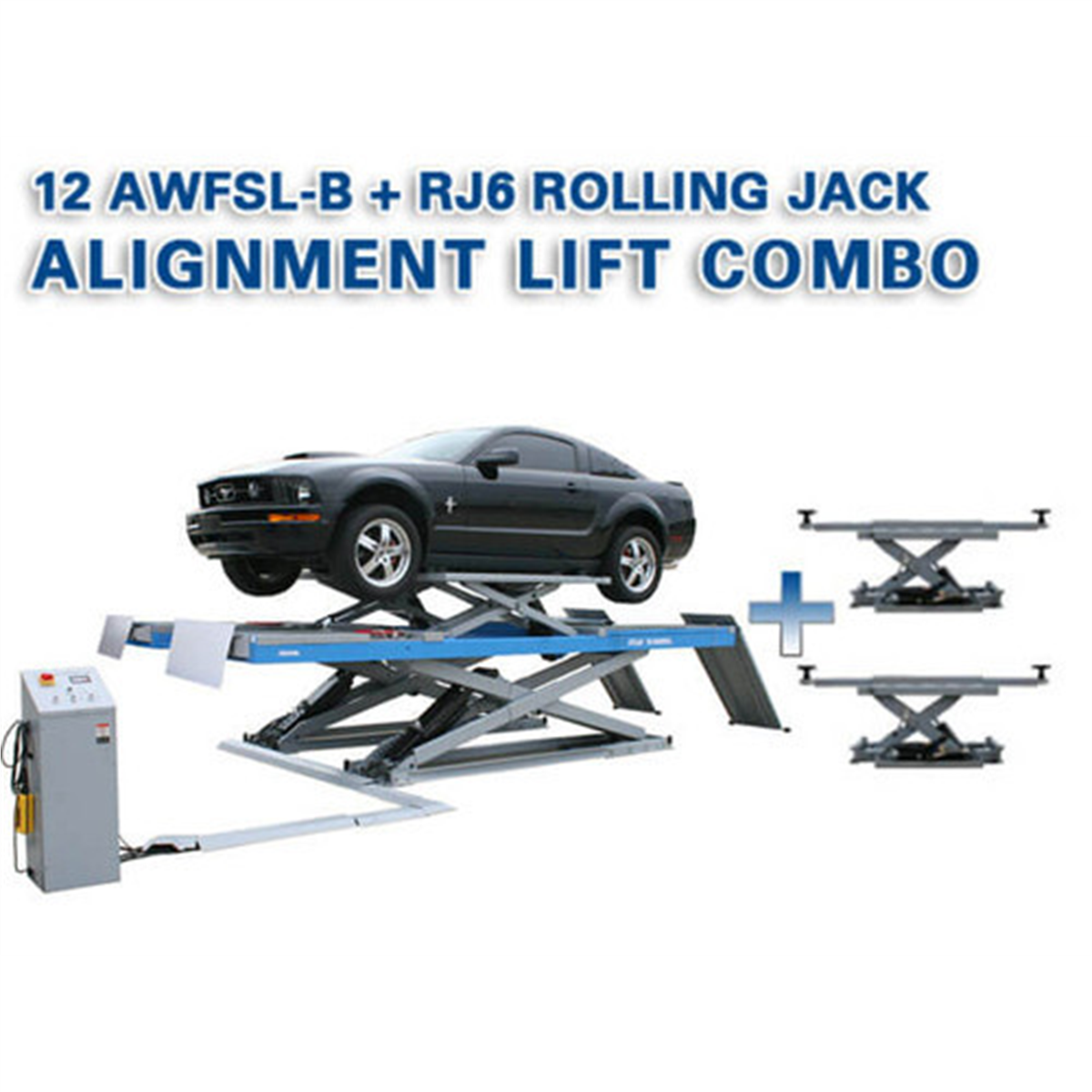

  • Combo includes 12AWFSL scissor alignment lift & two RJ-6 rolling jacks
  • Commercial Grade
  • "Wheels Free" Lifting System
  • Built in Slip Plates and Alignment Turntables Included
  • Turntable Covers Included
  • Open Center Design for Easy Access
  • Air-Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)
  • Airline Kit Included
  • Jacks are Air Over Hydraulic operated
  • Truck Adapter Set for each Jack Included
  • This part number FREIGHT PREPAID

The Atlas® 12AWFSL 12,000 lb.

  • scissor alginment lift has all the same features as the Atlas® 12ASL lift but with the addition of built in runway lifts known as the "Wheels Free" lifting system.
  • When a vehicle is loaded on the 12AWFSL lift the "Wheels Free" jacks will raise a vehicle by the frame, lifting it so the wheels come off the runways for easier access and to facilitate alignments.
  • The "Wheels Free" jacks are conveniently controlled at the lifts control console.

    • The Atlas® 12AWFSL has a lifting height of over seven feet so that it may be floor mounted or recessed in the floor for flush mounting.

  • The full frame under the scissor lift provides for maximum stability.

    • The separate control panel may be conveniently positioned to allow easy access for the operator.

  • The 220 volt (single phase) electric/hydraulic power unit is housed inside the metal control panel box.
  • The push button controls activate the raising and lowering of the lift.
  • The sophisticated air actuated lock system is automatically engaged and disengaged as the lift is being raised or lowered.
  • The lift has a safety lowering limit switch.
  • Once the lift platforms are lowered to within 10 � inches of the ground, the lift automatically stops its descent.
  • The Down button needs to be released and depressed again to allow the lift to go down completely.

    • This combo package also includes two of the the popular Atlas® RJ-6 rolling bridge jacks.

  • The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

    • Atlas® 12AWFSL Specifications

    • Capacity: 12000 lbs
    • Minimum Lift Height: 11 1/2"
    • Maximum Lift Height Above Floor: 84 1/4" (7' 1/4"))
    • "Wheels Free" Lift Height Above Runway: 17"
    • Overall Length w/ Ramps: 250" (20' 10")
    • Overall Length w/o Ramps: 197" (16' 5")
    • Overall Width: 86 3/8" (7' 2/ 3/8")
    • Runway Width: 23 3/4"
    • Between Runways: 39"
    • Air Requirement: 85-120 PSI
    • Motor/Electrical Requirement: 220volt +/- 5% (209-231 volts)/1phase 30amp breaker required
    • Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
    • Shipping Weight: 5500 lbs.

    Atlas® RJ-6 Specifications:

    • Capacity: 6,000 lbs
    • Minimum Width: 30 1/2"
    • Maximum Width: 64 1/2"
    • Distance Between Runway Capability: 31 1/2" - 49 1/2"
    • Minimum Pad Height (Above Runway): 3 1/2"
    • Maximum Lifting Height (w/ Adapters): 17 5/8"
    • Air Requirement: 70-115 PSI
    • Shipping Weight: 350 lbs
    • Adapter Heights: 2 Each 3", 7"
    • Arm Hole/Adapter Peg Size: 2"
