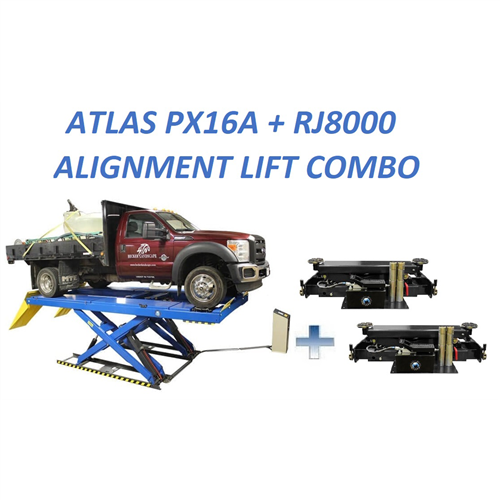

ATPK-PX16ACF-COMBO-FPD Atlas Automotive Equipment Atlas Px16A & Rj8 Alignment Combo
ATPK-PX16ACF-COMBO-FPD Atlas Automotive Equipment Atlas Px16A & Rj8 Alignment Combo

Our Price: $28,161.25


Availability:: Drop ships from the manufacturer. Lead times will vary
Product Code: ATEATPK-PX16ACF-COMBO-FPD
Qty:

Description Warranty


Request us to BEAT a competitor's price. Click Here
ATPK-PX16ACF-COMBO-FPD Atlas Automotive Equipment Atlas Px16A & Rj8 Alignment Combo

Features and Benefits:

Features & Benefits:

  • Combo includes PX16A scissor alignment lift & two RJ8 rolling jacks
  • Commercial Grade
  • Built in Slip Plates and Alignment Turntables Included
  • Turntable Covers Included
  • Open Center Design for Easy Access
  • Air-Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)
  • Jacks are Air Over Hydraulic operated
  • Truck Adapter Set for each Jack Included
  • This part number FREIGHT PREPAID

The Atlas® PX16A 16,000 lb.

  • capacity scissor alignment lift is the perfect choice for those service shops that need a space saving (narrow width) alignment lift to accommodate most all passenger cars up to heavy-duty long wheel base trucks and vans.
    • p>

    The Atlas® PX16A allows the operator to perform 4-wheel alignments for vehicles with wheel base lengths from 96 inches to 184 inches.

    The Atlas® PX16A includes a set of turntables, built in slip-plates, and runway jack rails designed to accommodate rolling jacks.

  • The lift is equipped with a semi enclosed air line kit routing system to accommodate the optional airline kit.
  • This air line kit will provide air to the rolling jacks and prevent shop air hoses from cluttering the floor.

    • This combo package also includes two of the the popular Atlas® RJ8 rolling bridge jacks.

  • The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

    • Atlas® PX16A Specifications

    • Capacity: 16000 lbs
    • Minimum Lift Height: 13 1/4"
    • Maximum Lift Height Above Floor: 71 1/2" (5' 11 1/2"))
    • Overall Length w/ Ramps: 271" (22' 7")
    • Overall Length w/o Ramps: 206 1/2" (17' 2 1/2")
    • Overall Width: 94" (7' 10")
    • Runway Width: 23 3/4"
    • Between Runways: 44 7/8" at top/41 3/8" at rails
    • Air Requirement: 85-120 PSI
    • Motor/Electrical Requirement: 220volt +/- 5% (209-231 volts)/1phase 30amp breaker required
    • Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
    • Shipping Weight: 6200 lbs.

    Atlas® RJ8000 Specifications

    • Maximum Capacity 8,000 lb.
    • Maximum Width 66 1/2" (5' 6 1/2")
    • Minimum Width 40" (3' 4")
    • Distance Between Runway Capability 34 1/2"-55"
    • Maximum Lifting Height (With Adapters) 30"
    • Air Requirement 70-115 PSI (External Air Supply Required - NOT INCLUDED)
    • Shipping Weight 390 lbs.
    • Adapter Heights 2 Each 2", 3"
    • Arm Hole/Adapter Peg Size 1.
    5"
